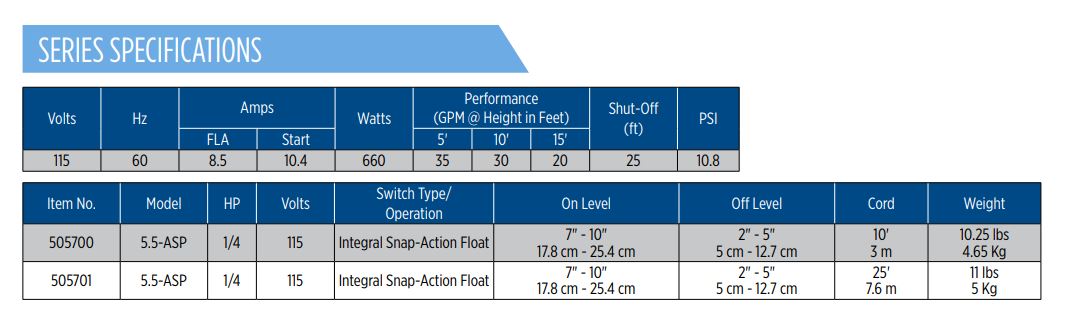

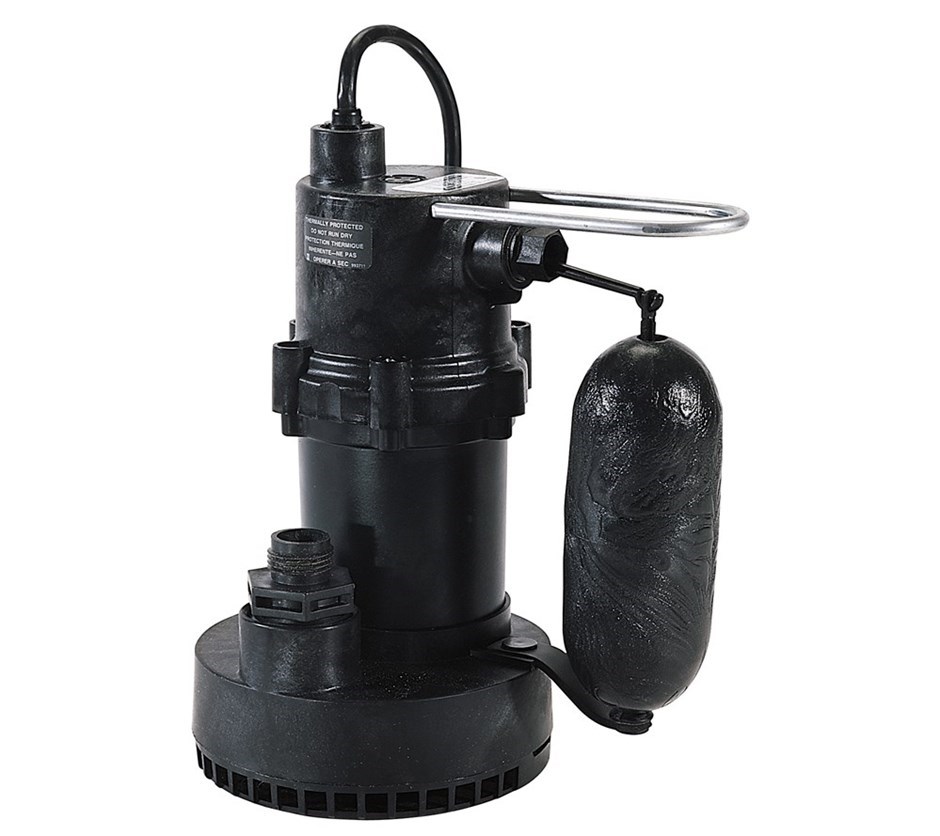

5.5 Series
Shaded pole motor with thermal overload protection
Oil-filled motor housing
Integral snap-action float switch
1-1/4" FNPT (31.7 mm) discharge
Screened inlet handles up to 3/8" (9.5 mm) solids
3/4" GHT (19 mm) garden hose adapter included
120 °F (49 °C) liquid temperature rating
cCSAus listed

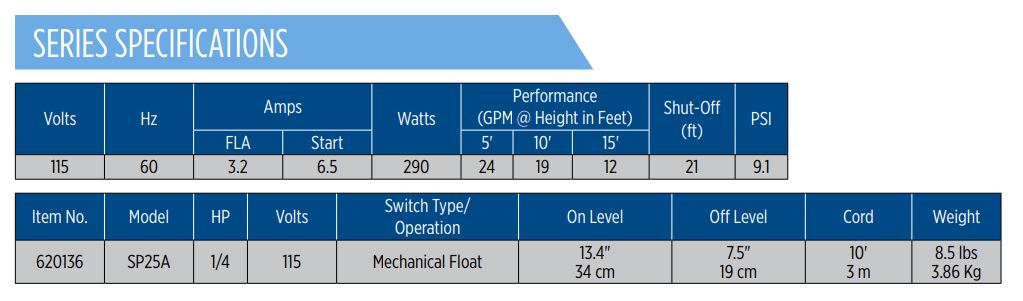

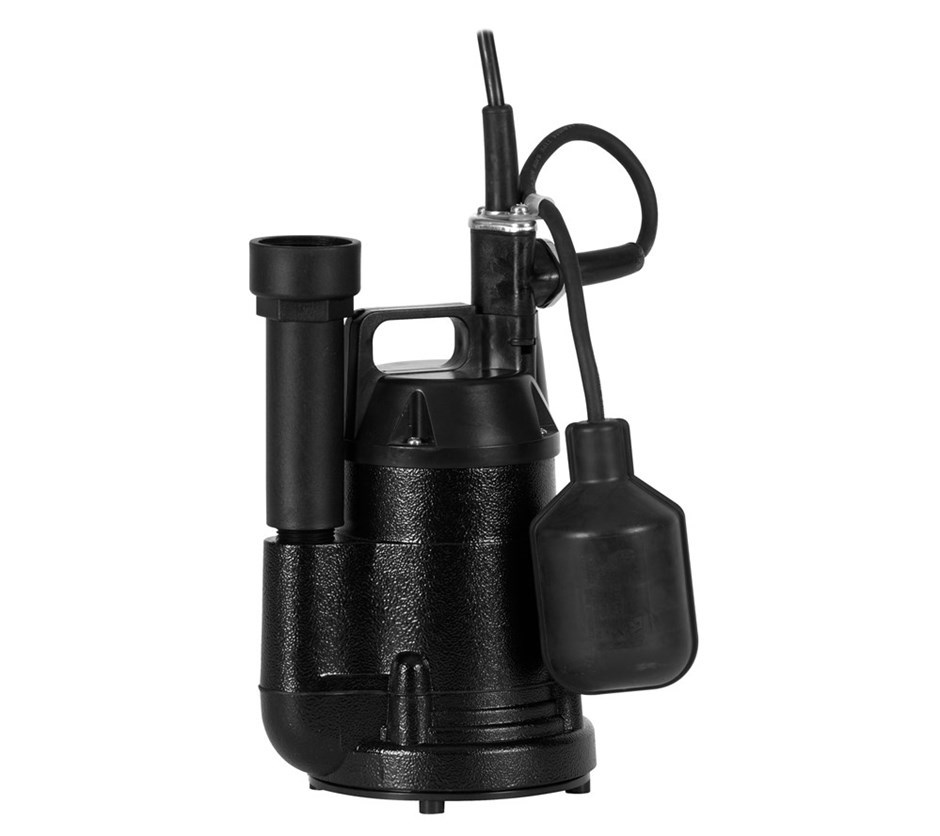

SP25 Series
Oil-free motor with thermal overload protection
Designed for continuous duty
1-1/4" NPT (31.7 mm) discharge
Handles up to 1/8" (3.18 mm) solids
Built-in suction strainer
Removable filter screen
120 °F (49 °C) liquid temperature rating
cCSAus listed

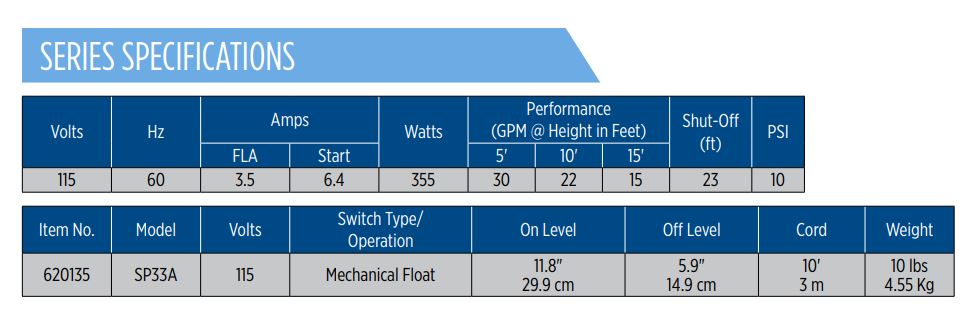

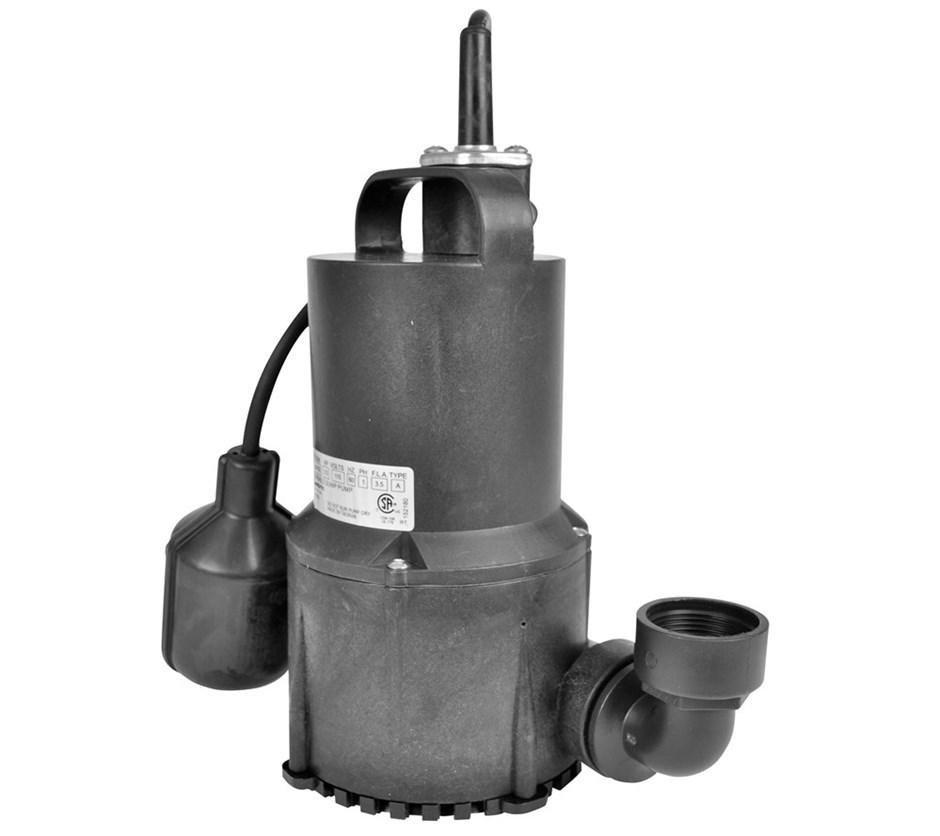

SP33 Series
Oil-free motor with thermal overload protection
Designed for continuous duty
1-1/4" NPT (31.7 mm) discharge
Handles up to 1/4" (6 mm) solids
Built-in suction strainer
Removable filter screen
120 °F (49 °C) liquid temperature rating
cCSAus listed
ESP33 Series
Oil-free motor with thermal overload protection
Designed for continuous duty
Cast iron or thermoplastic motor cover and casing options
Permanently lubricated upper/lower ball bearings with double lip seal
5 vane impeller
1-1/2" FNPT (38 mm) discharge, 1-1/4" (31.7 mm) reducer bushing included
Handles up to 1/2" (12.7 mm) solids
Multiple switch options for automatic operation
120 °F (49 °C) liquid temperature rating
cCSAus listed

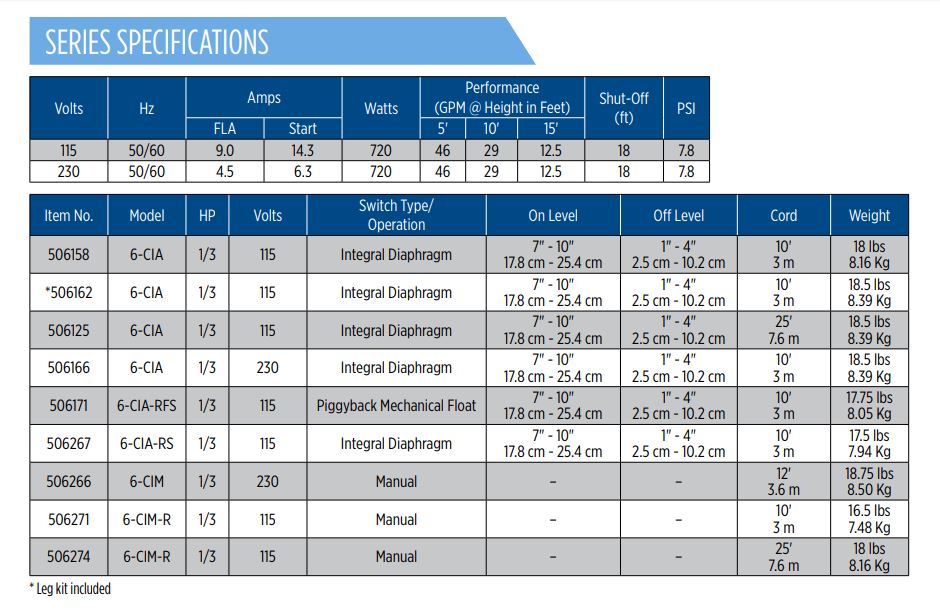

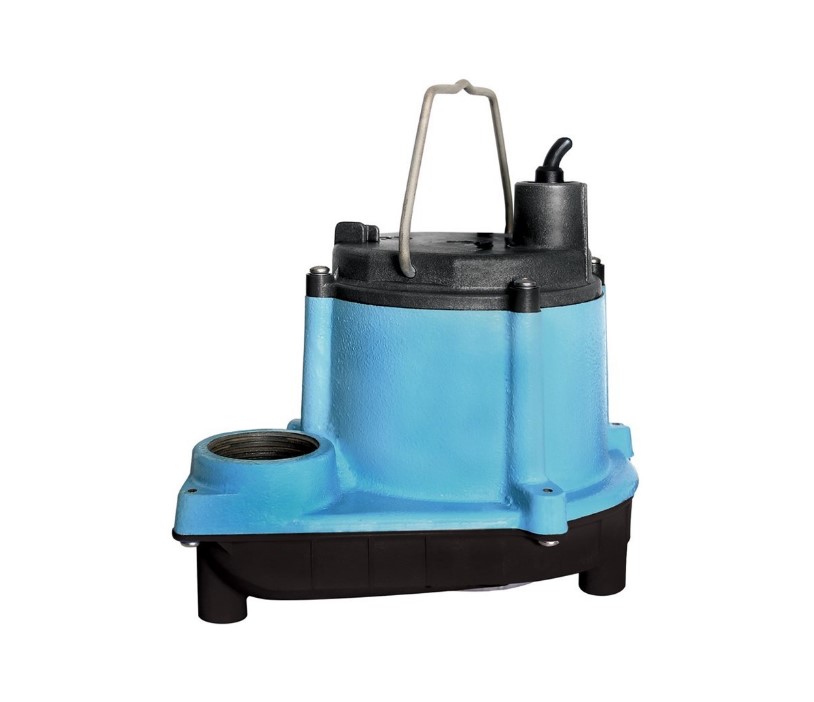

6 Series
Shaded pole motor with thermal overload protection
Designed for continuous duty
Oil-filled motor housing
PVC riser legs (506162 only)
1-1/2" FNPT discharge (38 mm)
1-1/4" FNPT (31.7 mm) reducer brushing included
3/4" GHT garden hose adapter included
cCSAus listed (115 v models only)

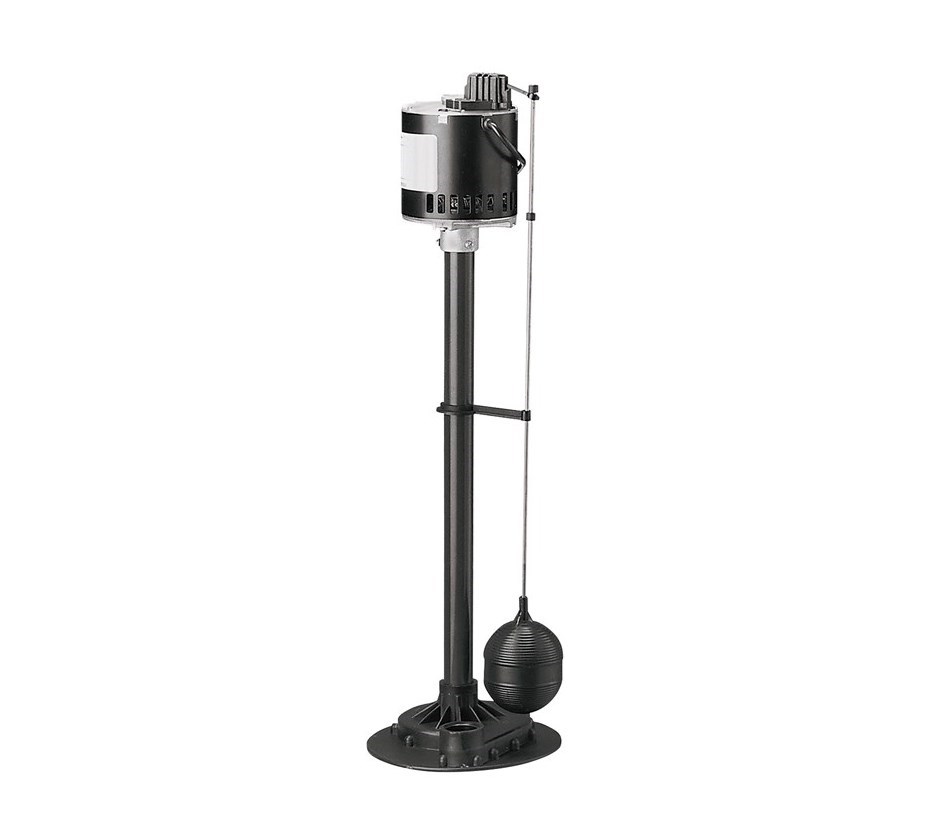

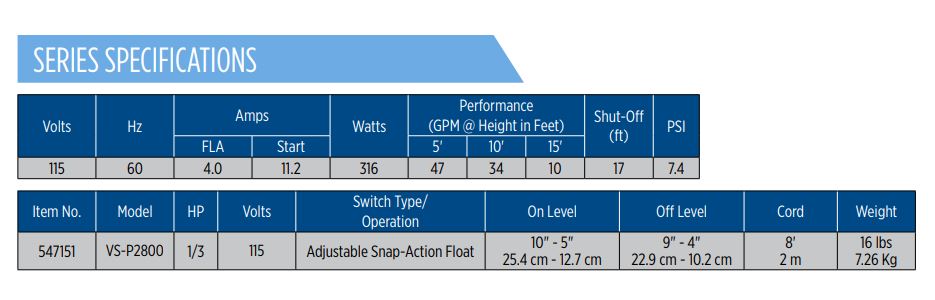

VS-P Series
Thermal overload protected motor
Designed for continuous duty
1-1/4" FNPT (31.7 mm) discharge
Handles up to 1/4" (6 mm) solids
Adjustable snap-action float switch
140 °F (60 °C) liquid temperature rating
cCSAus listed
HT-6E Series
Shaded pole motor with thermal overload protection
Designed for continuous duty
1-1/2" FNPT discharge (38 mm)
Handles up to 1/2" (12.7 mm) solids
Integral mechanical float switch
Up to 200 °F (93 °C)
CSA listed

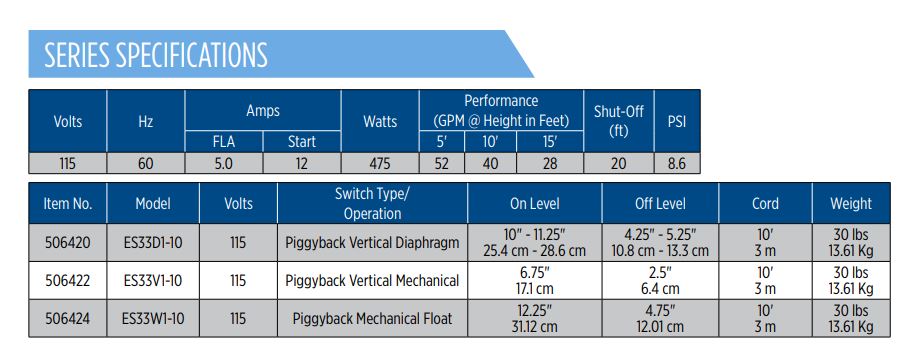

ES33 Series
Permanent split capacitor (PSC) motor with thermal overload protection
Designed for continuous duty
1-1/2" FNPT discharge (38 mm)
Handles up to 3/8" (9.5 mm) solids
Multiple switch options for automatic operation
cCSAus listed

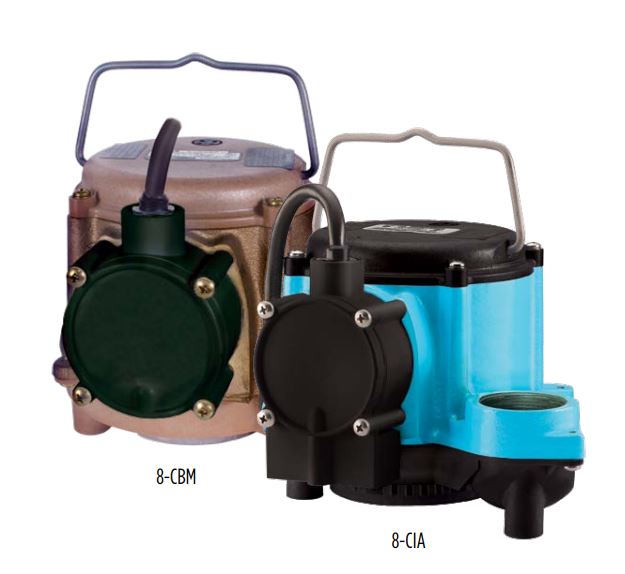

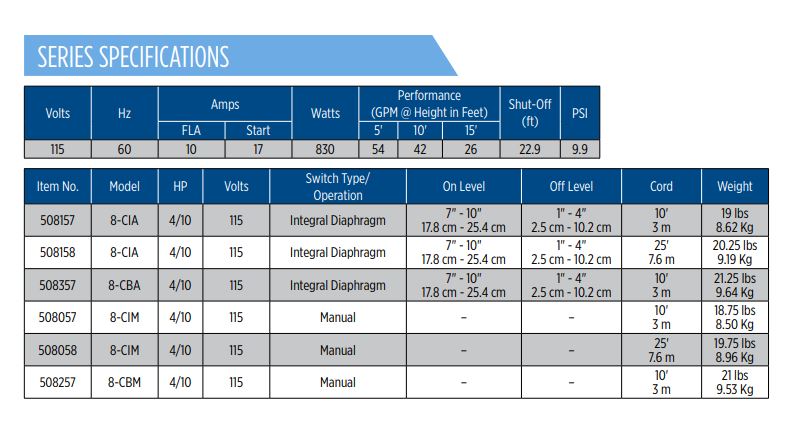

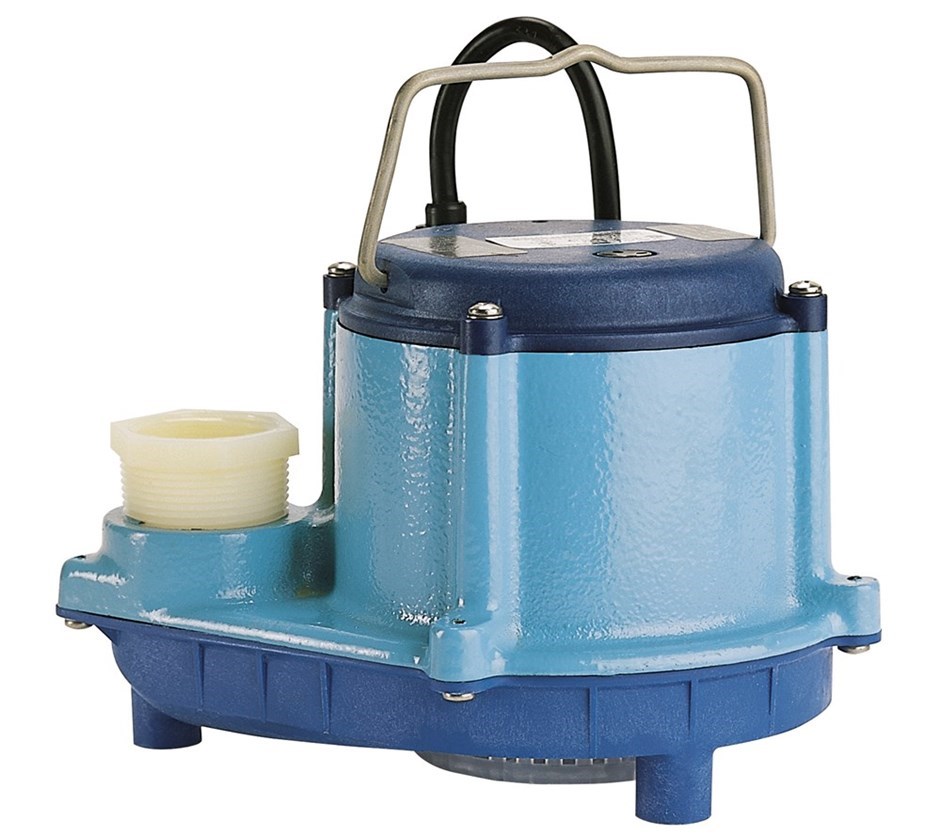

8 Series
Shaded pole motor with thermal overload protection
Designed for continuous duty
Oil-filled motor housing
Cast iron or cast bronze pump housing
1-1/2" FNPT discharge (38 mm)
140 °F (60 °C) liquid temperature rating
cCSAus listed

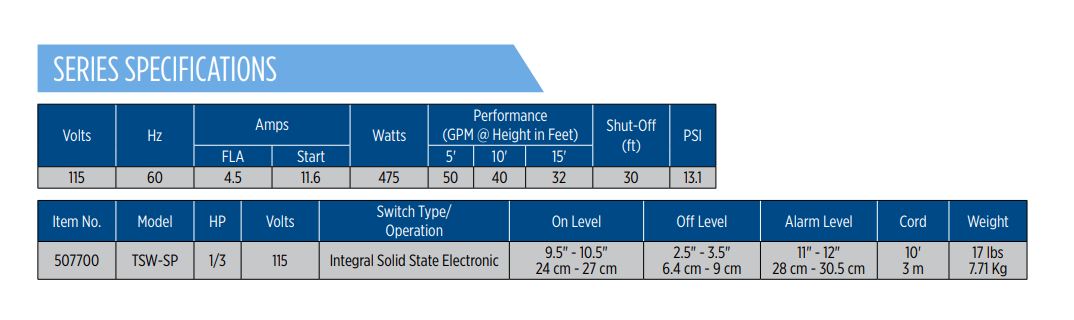

TSW Series
Permanent split capacitor motor
Designed to be installed suspended from basin cover
Non-corrosive construction
Integral IntelliPlug® provides high water alarm light and 85 dba alarm with run light built in
Leg kit raises up 2-1/4" (5.7 cm) if not used in basin
1-1/2" FNPT (38 mm) discharge
Side screened inlet
140 °F (60 °C) liquid temperature rating
cCSAus listed

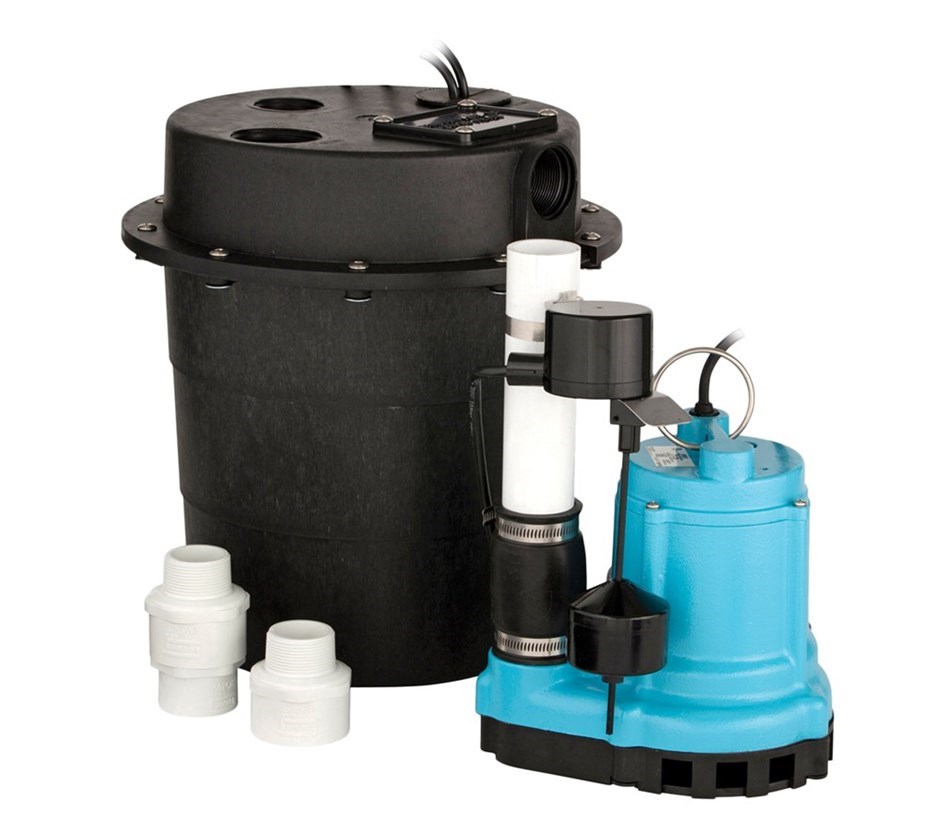

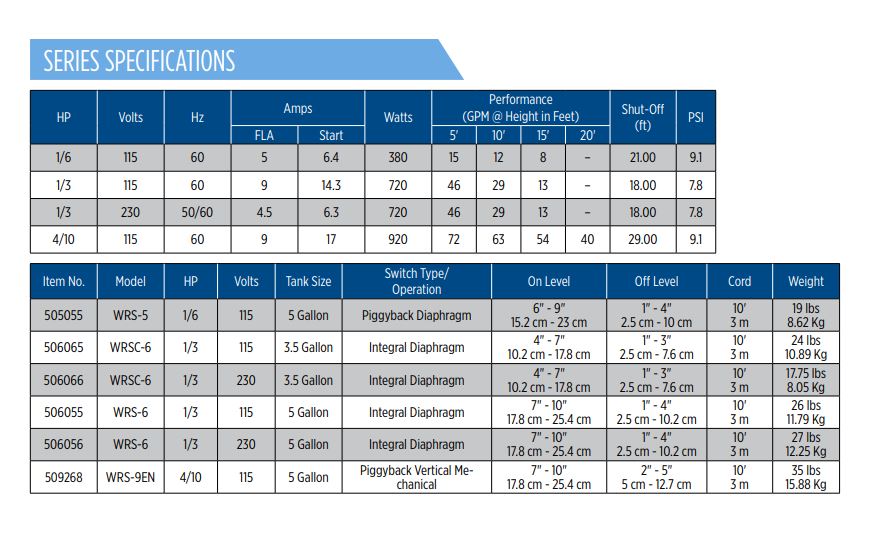

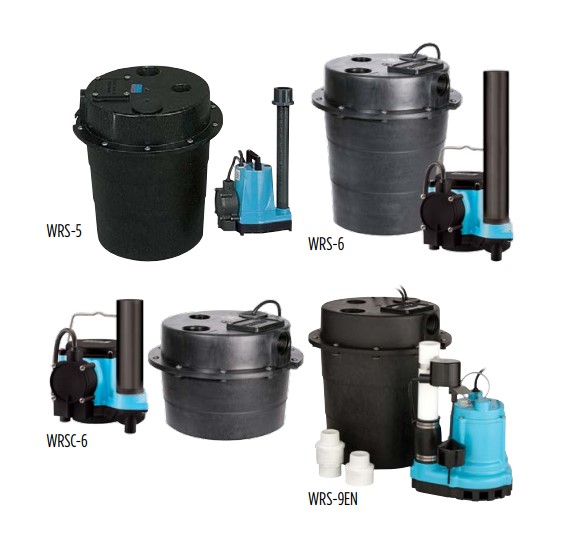

WRS Series
Basin Features
3.5 and 5 gallon size options
Polypropylene, lightweight, corrosion-resistant
Designed with O-rings for water tight seal
Cover includes removable filter for easy cleaning
Cover includes 1/1/2" FNPT (38 mm) discharge and intake opening, and 2" FNPT (5 cm) vent opening
IAPMO listed
Pre-assembled, ready to install
Pump Features
1/6, 1/3, and 4/10 hp options
Multiple switch options
cCSAus listed (pump only)

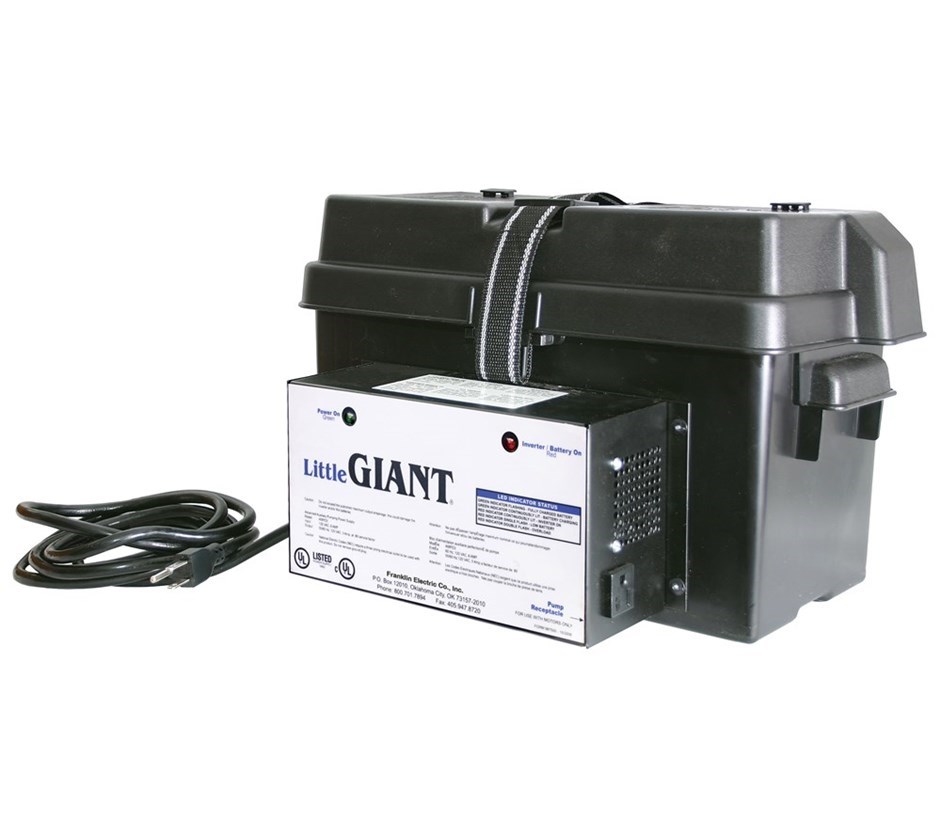

TSW-APS
Eliminates need and cost of installing a “back-up” pump that operates when power is out.
Converts pump to DC power in the event of a power failure
Includes inverter, battery box, and battery cover strap (battery not included)

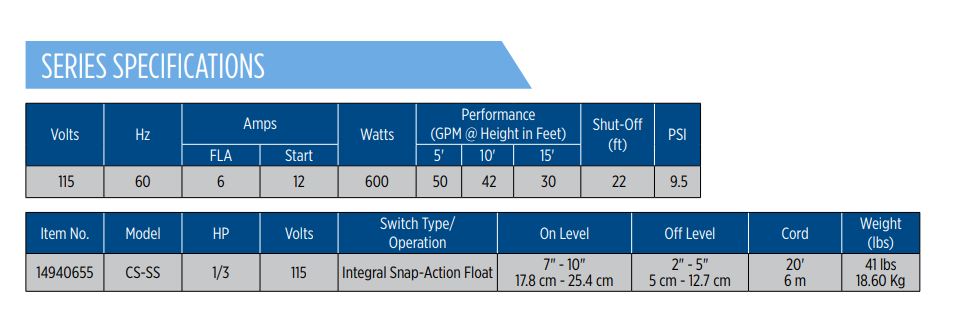

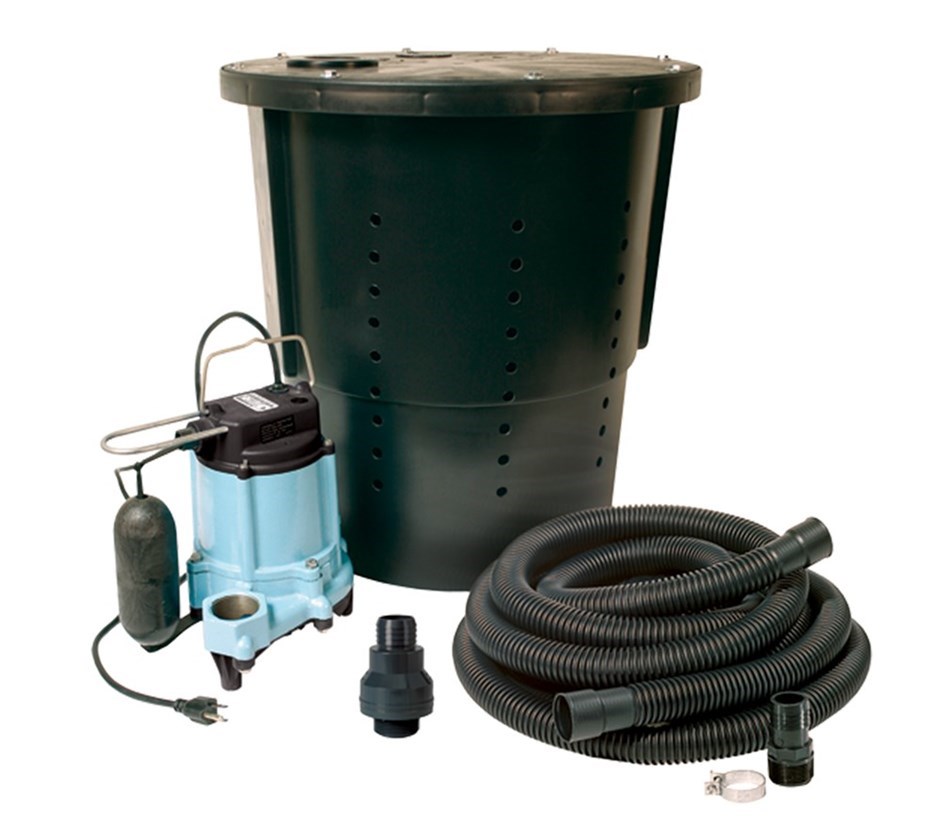

CS-SS Series
1/3 hp cast iron pump with overload protection
18" x 22" (46 cm x 56 cm) lightweight perforated polypropylene basin
Structural foam cover with slip fit flanges
1-1/4" x 24 ft (31.7 mm x 7.3 m) discharge hose kit
1-1/2" MNPT (38 mm) barbed check valve
cCSAus listed (pump only)
6EN Series
Permanent split capacitor (PSC) motor with thermal overload protection
Designed for continuous duty
1-1/2" FNPT discharge (38 mm)
Handles up to 1/2" (12.7 mm) solids
Multiple switch options for automatic operation
cCSAus listed

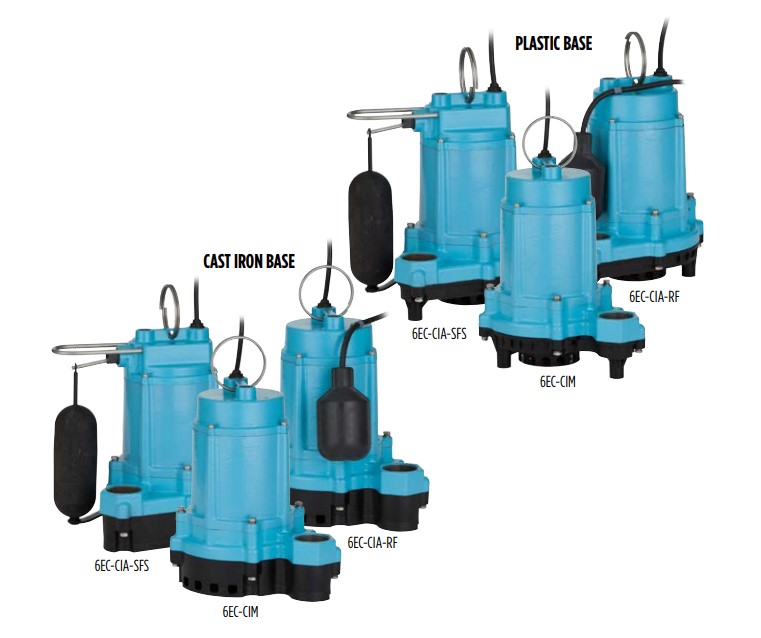

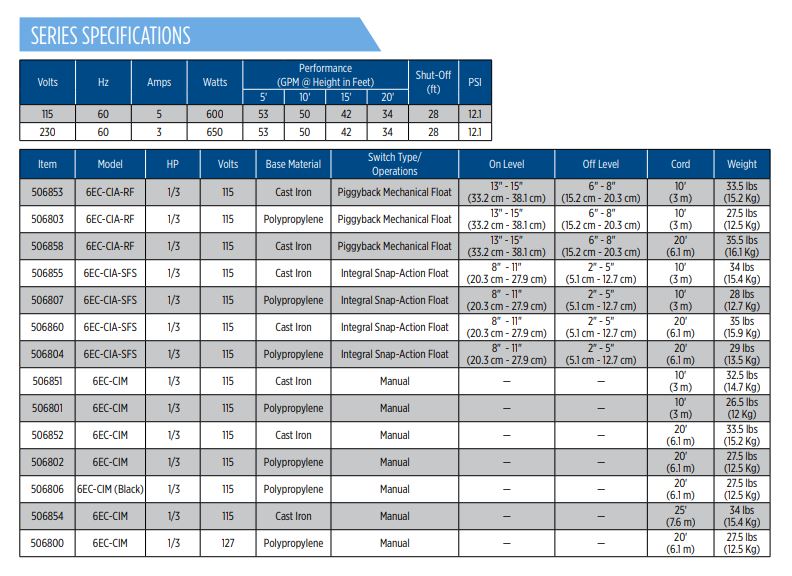

6EC Series
Heavy-duty cast iron construction
Permanent split capacitor (PSC) motor with thermal overload protection
Designed for continuous duty
Energy-saving low amp draw
Cooler running motor
1-1/2" FNPT discharge (38 mm)
Handles up to 1/2" (12.7 mm) solids
Multiple switch options for automatic operation
140 °F (60 °C) liquid temperature rating
cCSAus listed

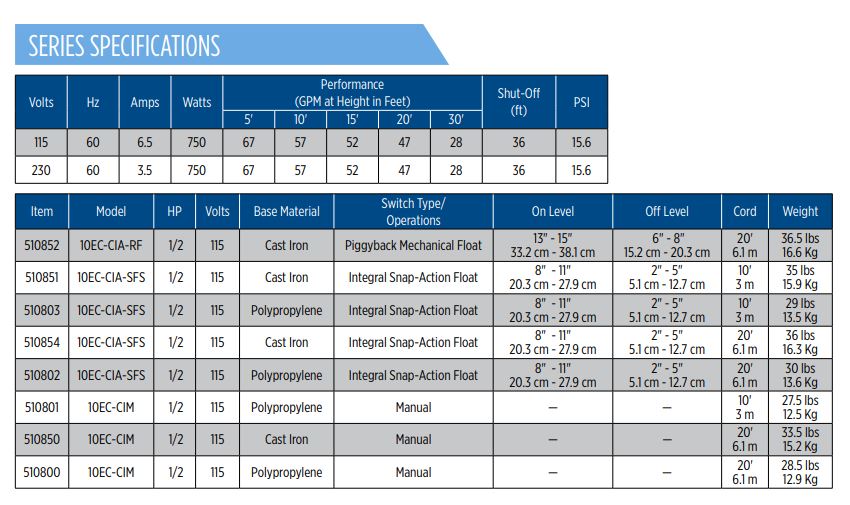

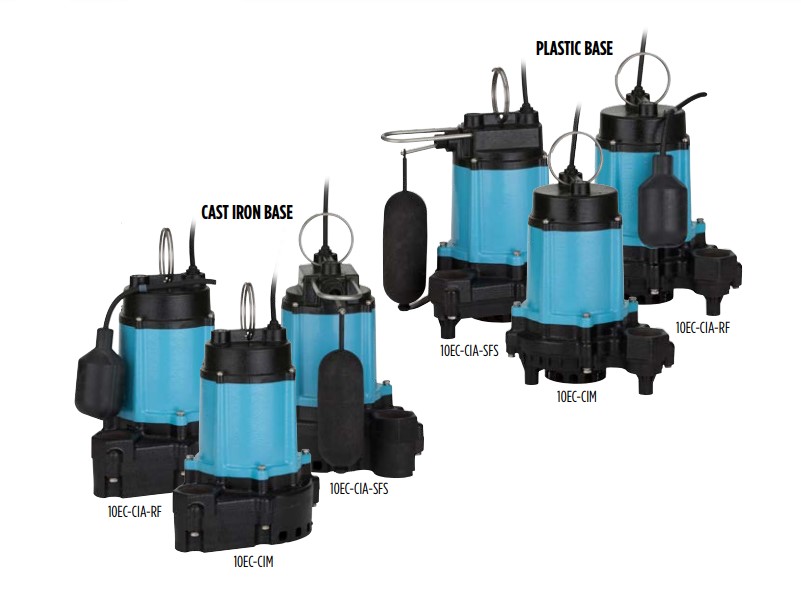

10EC Series
Heavy-duty cast iron construction
Permanent split capacitor (PSC) motor with thermal overload protection
Designed for continuous duty
Energy-saving low amp draw
Cooler running motor
1-1/2" FNPT (38 mm) discharge
Handles solids up to 1/2" (12.7 mm) diameter
Multiple switch options for automatic operation
140 °F (60 °C) liquid temperature rating
cCSAus listed
Download (12.43 MB)
