Self-Priming Centrifugal Pumps with open impeller

A Series

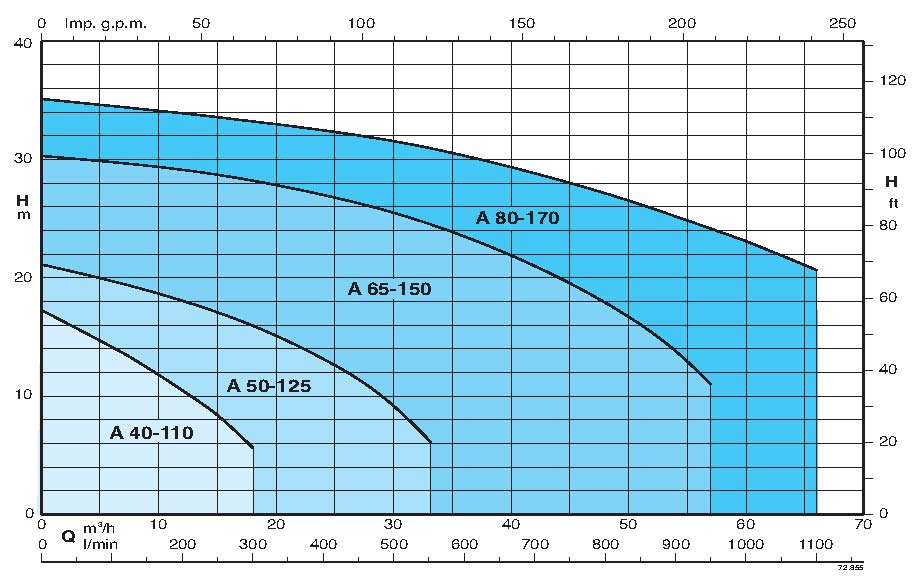

Flow

3.6 - 66

mc/h

Head

3.3 - 33.6

Power

0.55 - 7.5

Flow

15.85-290

usgpm

Head

10.82-110

Power

0.73-10

Short Description

Close-coupled centrifugal pumps with open impeller.
The built-in backflow preventer avoids reverse siphoning when the pump is stopped and assures automatic re-priming at the next start.
The pump re-primes itself even if partailly filled with liquid and with completely empty suction pipe.

Applications

- For clean or slightly dirty water, also with solids up to 10 mm grain size for A 40, A 50 and 15 mm for A 65, A 80.

- For draining a basin or a sump.

- For irrigation. For civil and industrial applications.

Construction

Close-coupled centrifugal pumps with open impeller.

The built-in backflow preventer avoids revers siphoning when the pump is stopped and assures automatic re-priming at the next start.

The pump re-primes itself even if partially filled with liquid and with completely empty suction pipe.

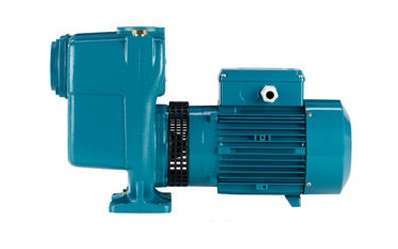

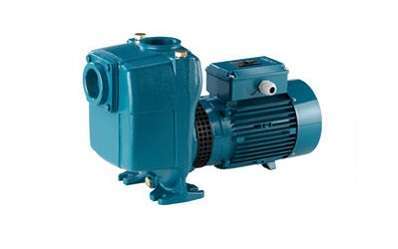

A: version with pump casing and lanter bracket in cast iron.

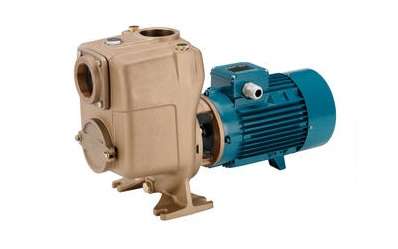

B-A: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Catalog

60 Hz Catalogue

Download (352.44 KB)
