Condensate Removal Pumps

- For removal of condensate from an air conditioner, suitable for high efficiency, gas furnace condensation, and condensing boilers

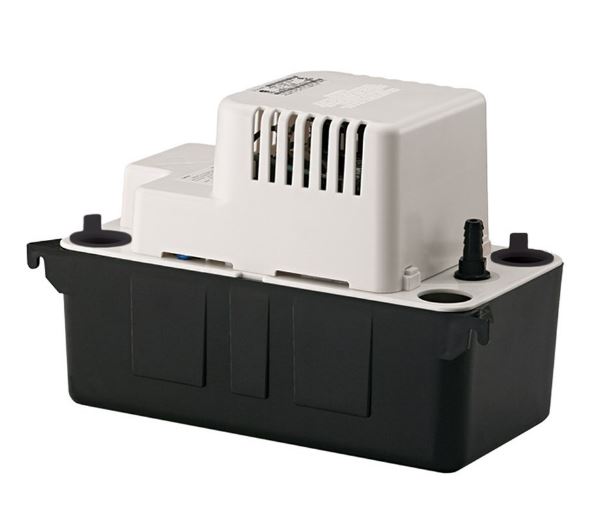

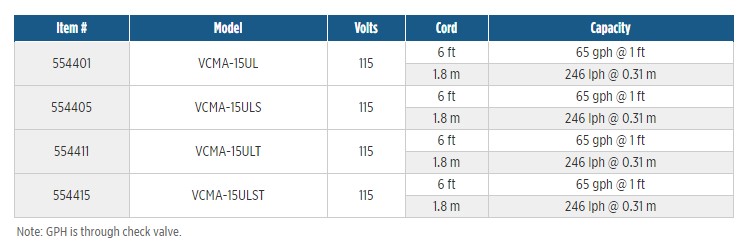

VCMA-15

1/50 hp high performance motor
ABS tank, motor cover, and volute
1/2 gallon tank capacity
Stainless steel shaft
Snap-action switch
Removable 3/8" (9.5 mm) barbed check valve
3 inlet drain holes
Thermal overload protection
Includes 20 ft (6.1 m) of 3/8" ID (9.5 mm) tubing (554411 and 554415 only)
Safety switch (554405 and 554415 only)
cCSAus

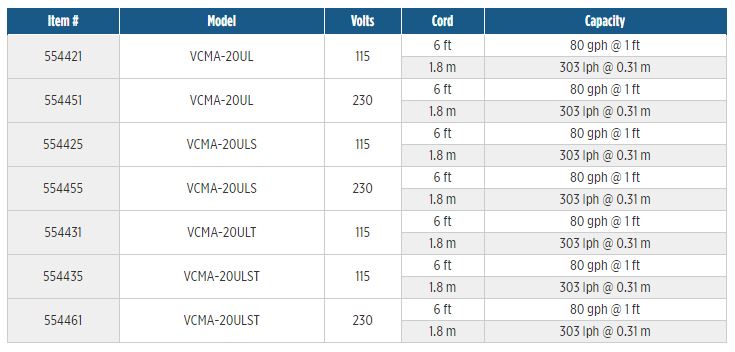

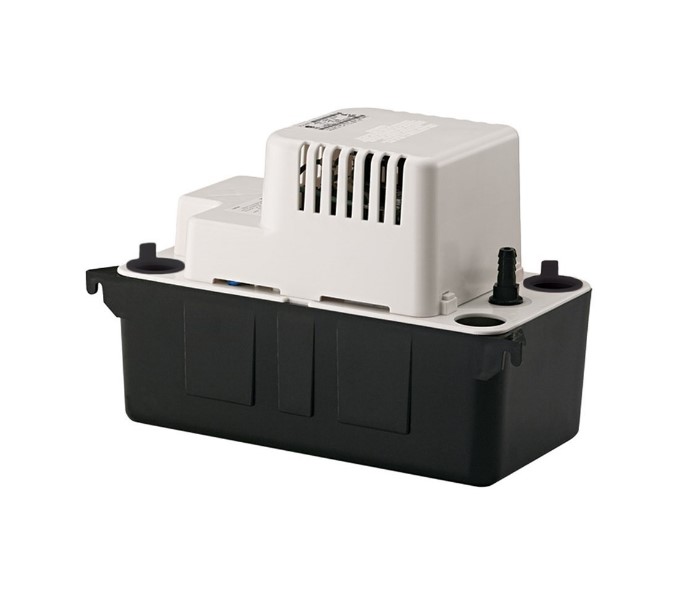

VCMA - 20

1/30 hp high performance motor
ABS tank, motor cover, and volute
1/2 gallon tank capacity
Stainless steel shaft
Removable 3/8" (9.5 mm) barbed check valve
3 inlet drain holes
Thermal overload protection
Includes 20 ft (6.1 m) of 3/8" ID (9.5 mm) tubing (554431, 554435, and 554461 only)
Safety switch (554435, 554425, 554455, and 554461 only)
cCSAus

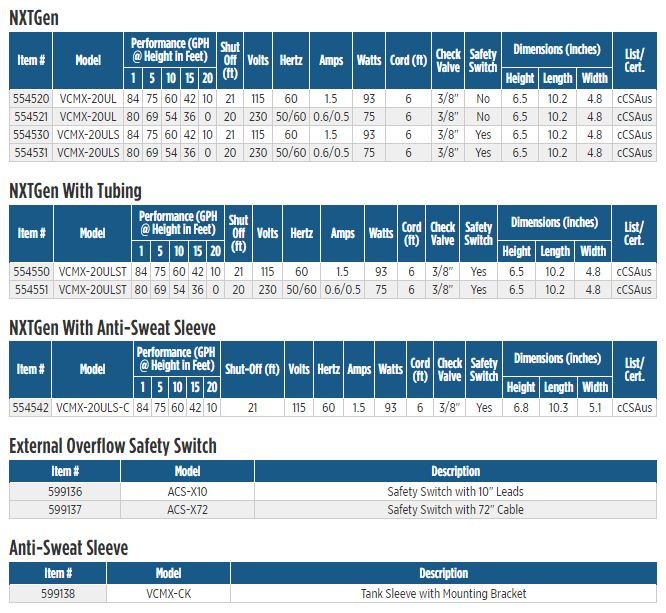

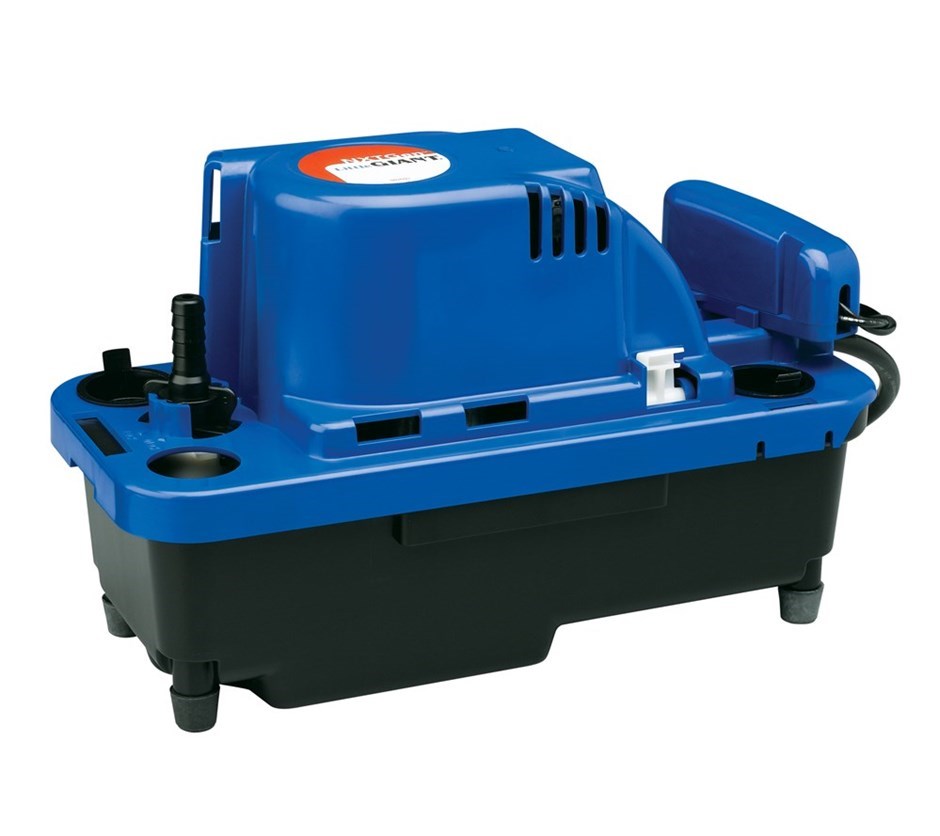

VCMX - 20

1/30 hp high performance motor
Fully automatic: start, stop, safety switch
Check valve outlet: 3/8" (9.5 mm), for 3/8" (9.5 mm) ID
cCSAus listed
Options: safety switch, 20 ft (6 m) of 3/8" (9.5 mm) tubing, and anti-sweat sleeve

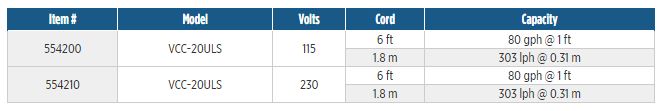

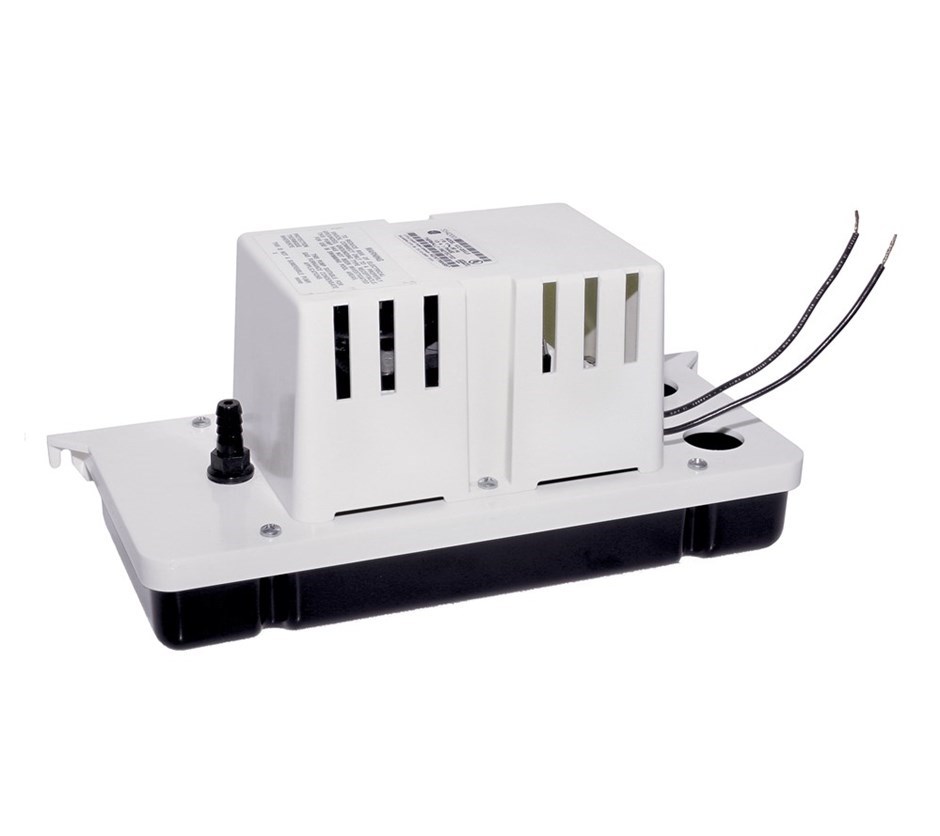

Low Profile VCC Series

1/30 hp motor
Low profile for limited space applications
ABS tank, motor cover, and volute
3/10 gallon tank capacity
Stainless steel shaft
Removable 3/8" (9.5 mm) barbed check valve
Thermal overload protection
Safety switch
cCSAus

VCC-20-P Series Low Profile for Plenum Applications

The pump meets the requirements of UL 2043 and is labeled “For Plenum Applications”.
1/30 hp motor
1-3/4" low profile tank height ideal for tight spaces
Vertical centrifugal pump design
1.2 quart (1.1 liters) capacity tank
Automatic start and stop switch
3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
1-1/8" diameter inlet
Float-activated auxiliary high-level switch
Two 72" high-level switch lead wires
Thermally protected, fan-cooled motor
Intermittent liquid temperature up to 140 °F
20 ft shut-off head (115V model)
Designed for hard-wire installation only
72" 3-conductor lead wires with conduit fitting for ½" diameter flexible metal conduit
Stainless motor shaft
cCSAus listed

VCL-24ULS

1/18 hp motor
Galvanized steel tank cover
ABS tank, volute, and switch cover
1 gallon tank capacity
Stainless steel shaft
Snap-action switch
Safety switch (553201, 553211)
Thermal overload protection
cCSAus

VCL-14ULS

1/50 hp motor
Galvanized steel tank cover
ABS tank, volute, and switch cover
1 gallon tank capacity
Stainless steel shaft
Thermal overload protection
Safety switch
cCSAus

VCL-45ULS

1/5 hp motor
Galvanized steel tank cover
ABS tank, volute, and switch cover
1 gallon tank capacity
Stainless steel shaft
Snap-action switch
Thermal overload protection
3/8" (9.5 mm) discharge copper tube
cCSAus

EC-1 Mini-Split/Ductless

Pump:
Normally-closed relay related 8A resistive - 250 V alarm
Quick connect for pump-to-reservoir communications
Quick connect for power cable
Pump bracket designed to isolate noise
21 dB(A)* sound level
Multi-size hose drain adapter fits all popular drain hose connectors
Reservoir:
Clear reservoir for instant visual inspection of water level,float, and filter
Hall effect on/off level sensors with high water safety sensor
Extra-large filter screen for longer intervals between cleaning

EC-1-DV

Dual Voltage 110 - 240 V 50/60 Hz
21 dB(A)*
2.5 gph @ 1 ft (9.5 lph) flow
33 ft (10 m) shut-off (max. recommended)
Hall effect switching
Large inlet filter
Multi-size hose drain adapter fits all popular drain hose connectors

EC-1K Mini-Split/Ductless

Includes EC-1 Mini Condensate Pump
Right- or left-side installation
2.1" x 3.0" (5.3 cm x 7.6 cm) line set inside dimensions
19.7" (50 cm) drain hose tubing
Detatchable 84" (213.4 cm) power cord
90° "elbow" for locating pump reservoir
31.5" (8 cm) straight line set cover
Line set duct accommodates 3/8" and 5/8" line set pipe
Twist motion snap-lock clips and cable ties to secure line set
Pump enclosure/mounting bracket
Wall fasteners for line set duct
Air conditioner trim and bracket
Ceiling plate when installing without pump enclosure

EC-1K-DV

Pump Features:
Dual Voltage 110 - 240 V 50/60 Hz
21 dB(A)*
2.5 gph @ 1 ft (9.5 lph) flow
33 ft (10 m) shut-off (max. recommended)
Hall effect switching
Large inlet filter
Multi-size hose drain adapter fits all popular drain hose connectors
Line Set Kit Features:
Includes EC-1-DV pump
Right- or left-side installation options
2.1" x 3.0" (5.3 cm x 7.6 cm) line set duct inside dimension
19.7" (50 cm) drain hose tubing
Detachable power cord 84" (213.4 cm)
90° “elbow” for locating pump reservoir
31.5" (80 cm) straight line set cover
Room inside line set duct for 3/8" and 5/8" line set pipe
Twist motion snap-lock clips and cable ties to secure the line set
Pump enclosure and pump mounting bracket
Wall fasteners included (to secure line set duct to wall)
Air conditioner trim and bracket for “finished look “
Includes ceiling plate when pump enclosure not installed

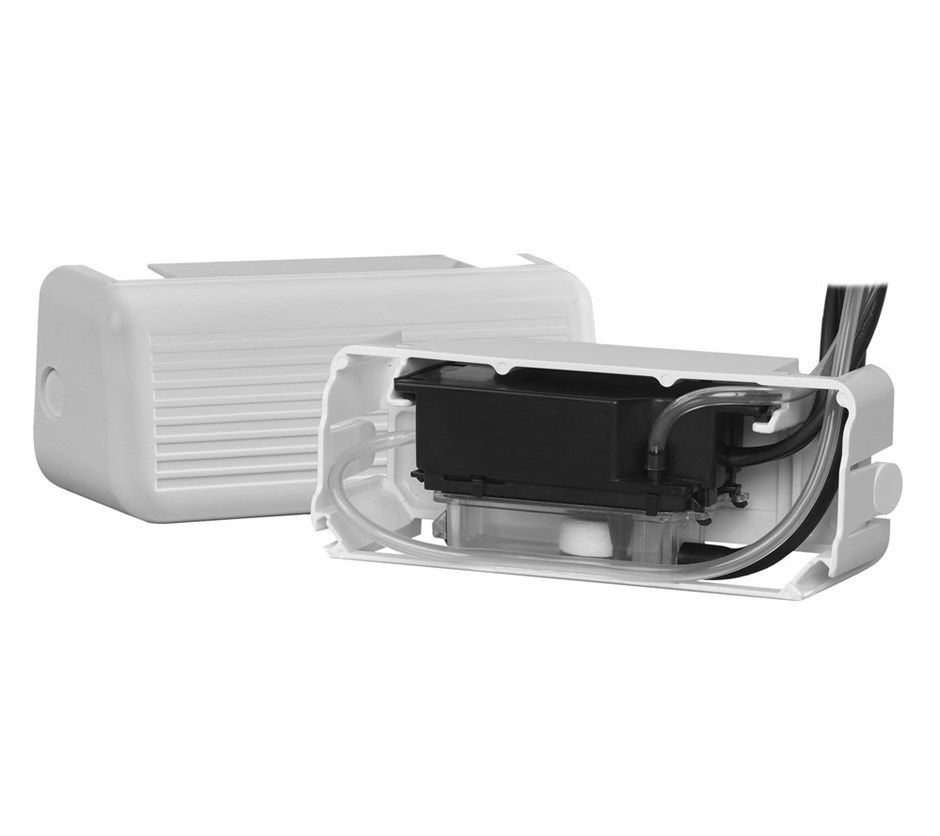

EC-OP-K Series

Pump float retainer for easy serviceability
Clear reservoir for visual inspection of water level, float, and filter
Safety alarm ready
8A resistive – 250 V alarm contact
5/16" (8 mm) inlet tubing with universal adapter
5/32" (4 mm) discharge tubing with 1/4" (6 mm) adapter
131 ft (40 m) maximum horizontal distance
176 °F (80 °C) thermal protection
Safety alarm ready, suitable for BMS systems
cCSAus

EC-400

For intermittent operation, maximum 50% duty cycle
Condensate produced in application must be no more than half the pump's flow rate for any given head
Use with most mini-split air conditioning units up to 25,000 BTU/hr
Self-priming pump can be placed up to 3 ft (.9 m) above reservoir
Includes safety switch, suction tubing (3" x 5/32" ID) [76.2 mm x 3.96 mm], vent tubing (8" x 5/32" ID) [20.3 cm x 3.96 cm], drain tubing (3" x 1/2" ID) [76.2 mm x 12.7 mm] and tubing adapter (5/32" x 1/4" ID) [3.96 mm x 6.3 mm]
cURus

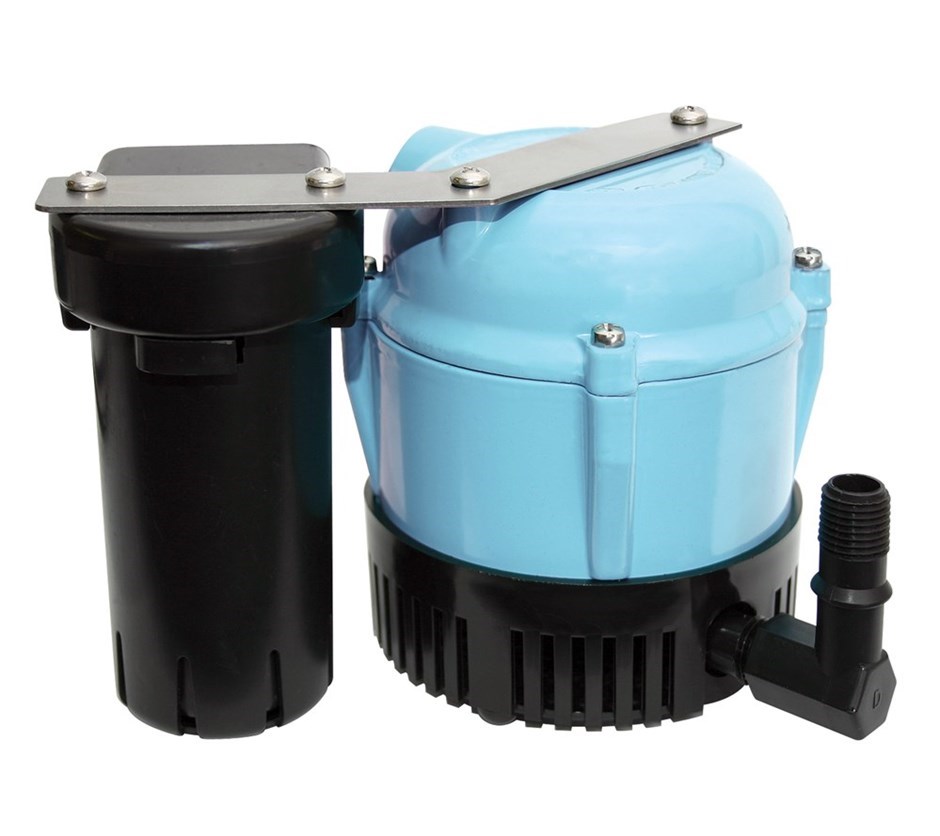

1-ABS Shallow-Pan Tank

1/150 hp oil-filled motor
Epoxy-coated cast aluminum housing and motor cover
Nylon volute
Stainless steel shaft
Nitrile shaft seal
Screened intake
Advanced mechanical switch
Thermal overload protection
cCSAus

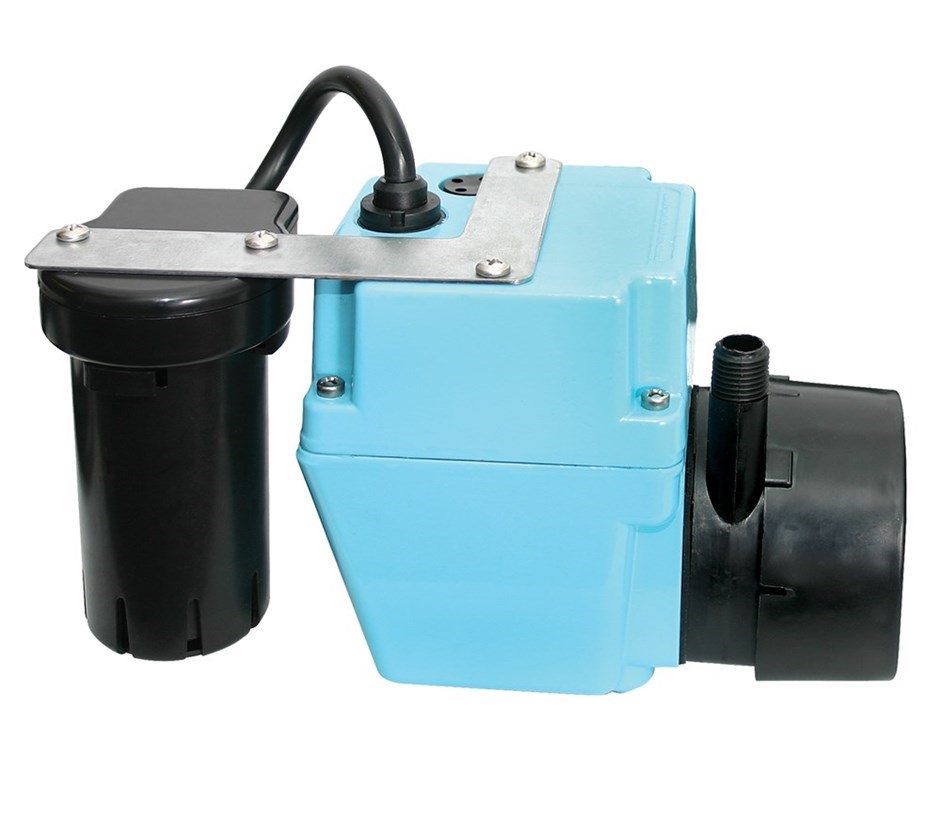

2-ABS Shallow-Pan Tank

1/40 hp oil-filled motor
Epoxy-coated cast aluminum housing
Includes 1/2 gallon capacity mineral-filled nylon tank
Nylon volute
Stainless steel shaft
Fluoroelastomer (FKM) shaft seal
Hooded intake
Advanced mechanical switch
Thermal overload protection
cCSAus

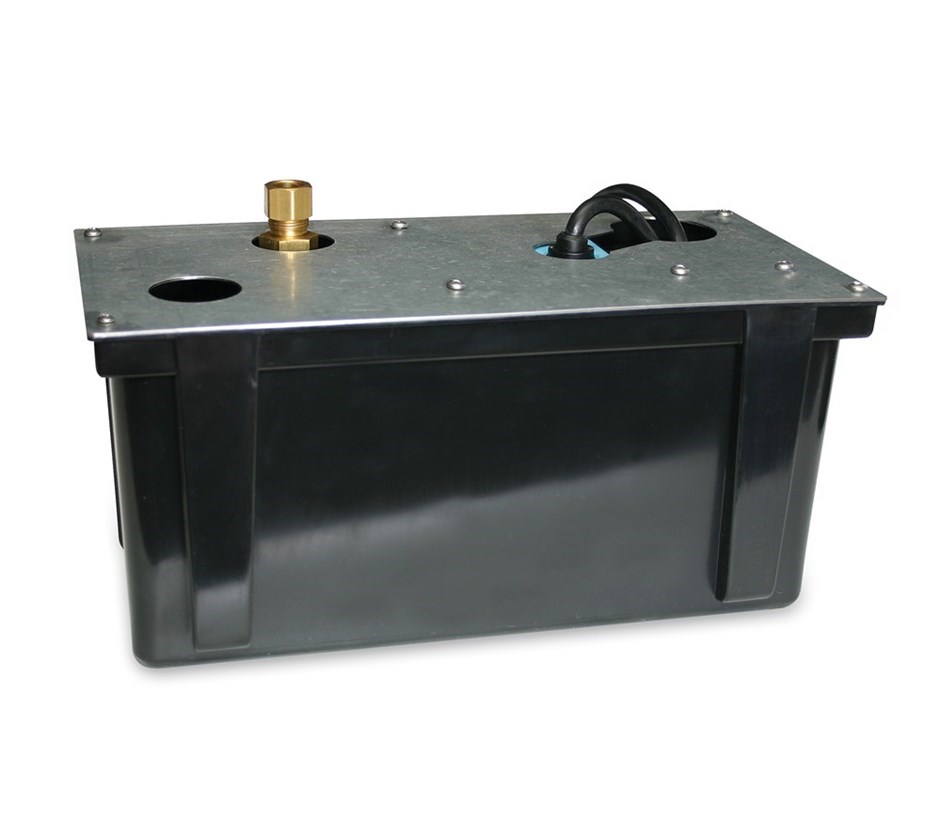

3-ABS Shallow-Pan Tank

1/12 hp oil-filled motor
Epoxy-coated cast aluminum housing and motor cover
Galvanized steel tank cover
ABS tank
1 gallon capacity
Nylon volute
Stainless steel shaft
Thermal overload protection
1/2" MNPT discharge with brass check valve for 1/2" OD (12.7 mm), rigid plastic or copper
Fluoroelastomer (FKM) shaft seal
Advanced mechanical switch
Thermal overload protection
cCSAus

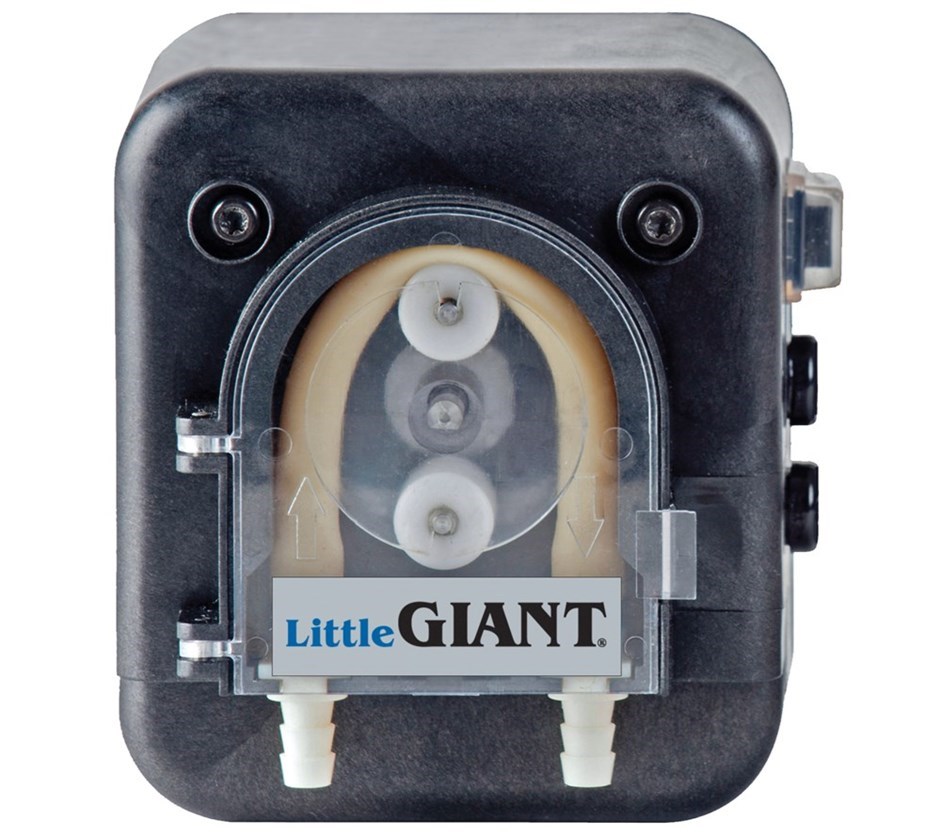

Peristaltic TP Series

Not affected by dust, bacteria, mold or airborne particles found in condensate
Glass-reinforced polycarbonate pump/motor housing
Hinged tube cover
Extra tube assembly included
Santoprene® tube
Easy to replace pump tube – no tools required
5-minute "off" delay (TPS and TPT models)
Impedance protected motor
Test switch, double insulated, enclosed motor housing
Wall bracket included
Recommended for systems up to 12 kW (6 kW in tropical areas)
cCSAus
