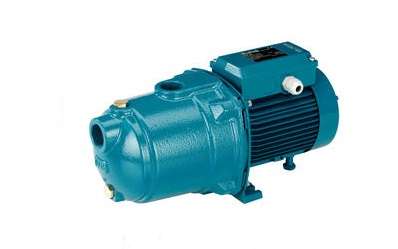

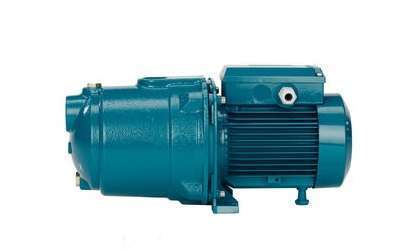

Horizontal Multi-Stage Close Coupled Pumps

MGP Series

Flow
1 - 8
m³/h
Head
3 - 64
m
Power
0.25 - 1.1
kW
Flow
4.40-35.22
usgpm
Head
9.8 - 210
ft
Power
.34 - 1.5
hp
Applications

- For water supply.

- For domestic use, for garden use and irrigation.

Construction

Horizontal multi-stage close coupled pump.

Single-piece barrel casing in cast iron, with front suction port above pumps axis and radial delivery at top.

Stages in Noryl.

Catalog
60 Hz Catalogue
PDF icon Download (647.48 KB)
