Self-Priming Pumps

NG Series

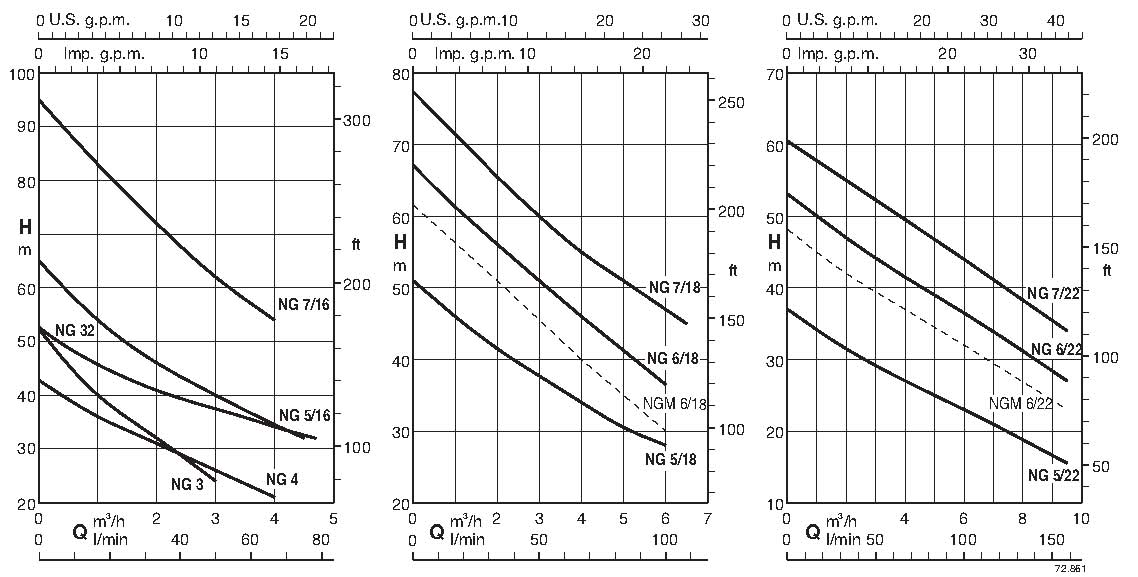

Flow

0.25 - 9.5

m³/h

Head

20 - 82

m

Power

0.55 - 2.2

kW

Flow

1.1-41.8

usgpm

Head

65.6-269

ft

Power

0.75 - 3

hp

Applications

- For drawing water out of a well.

- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).

- For clean liquids or slightly dirty surface water.

- For garden use.

- For washing with a jet of water.

Construction

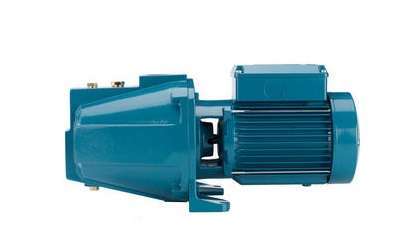

Close-coupled self-priming shallow well jet pumps with built-in ejector.

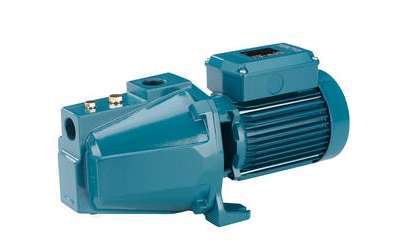

NG: version with pump casing and lanter bracket in cast iron.

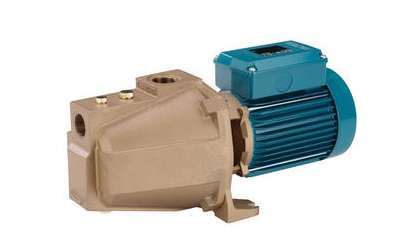

B-NG: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Catalog

60 Hz Catalogue

Download (646.36 KB)
