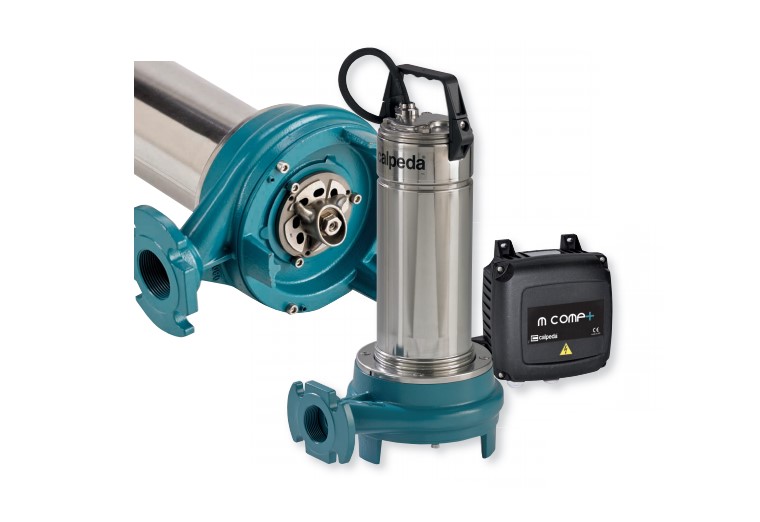

Submersible Pumps with High Power Grinder

GQG

Flow
3 - 17
mc/h
Head
4 - 25
m
Power
0.9 - 1.5
kw
Flow
13.2 - 74.8
usgpm
Head
13.1 - 82
ft
Power
1.2 - 2
hp
APPLICATIONS

- Suitable for pumping waste water containing long filamentous, paper and textile materials and organics.
- They are particularly suitable for use in domestic, residential and industrial installations.
- Solid passage 6 mm

CONSTRUCTION

Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port (DN 32 – G 1 1/2”).
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Catalog
60 Hz Catalogue
PDF icon Download (686.87 KB)
Instruction
PDF icon Download (3.97 MB)
