Close Coupled Centrifugal Pumps with Flanged Connections

NM(EI), NMS Series

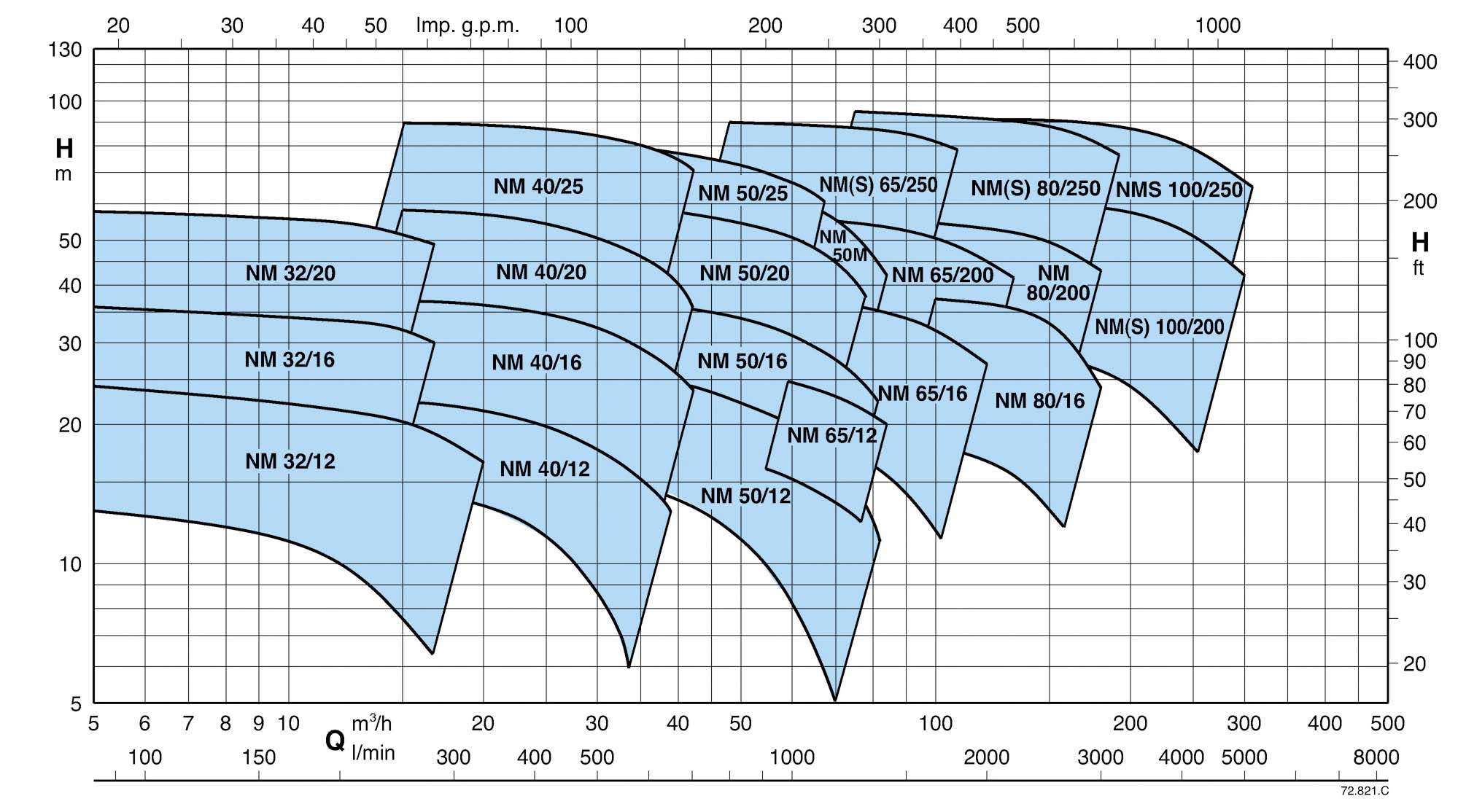

Flow

1 - 300

m³/h

Head

3 - 95

Power

0.25 - 75

Flow

4.4-1320

usgpm

Head

9.8-311

Power

0.33-100

Applications

- For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0,2%).

- For water supply.

- For heating, air conditioning, cooling and circulation plants.

- For civil and industrial applications.

- For fire fighting applications.

- For irrigation.

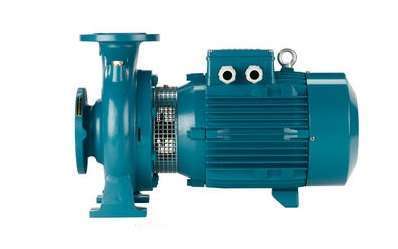

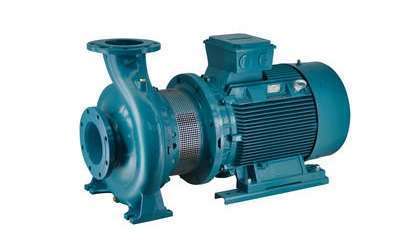

Construction

Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 30kW, new bracket construction for standard motors (stub-shaft construction) from Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733.

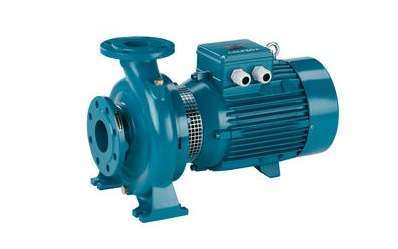

NM: version with pump casing and lanter bracket in cast iron.

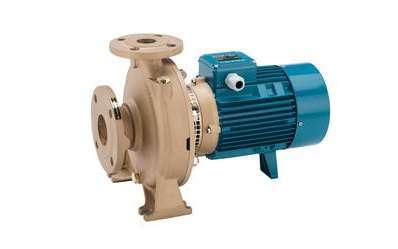

B-NM: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).

Catalog

60 Hz Catalogue

Download (1.32 MB)
