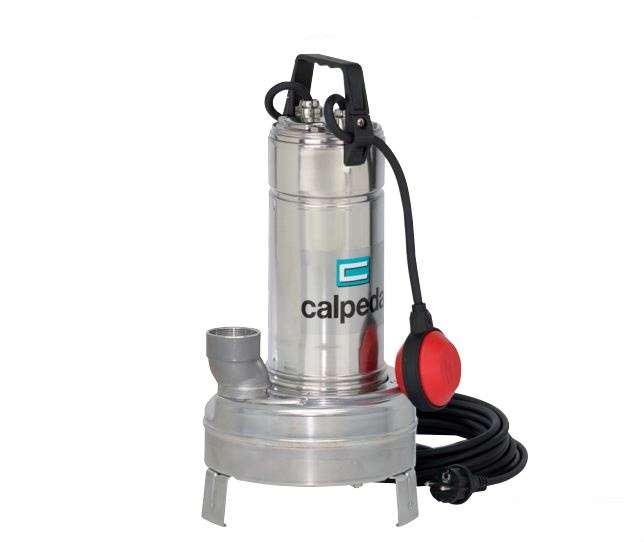

Single-Impeller Submersible Pumps in Chrome-Nickel Stainless Steel with Vertical Delivery Port

GX 40

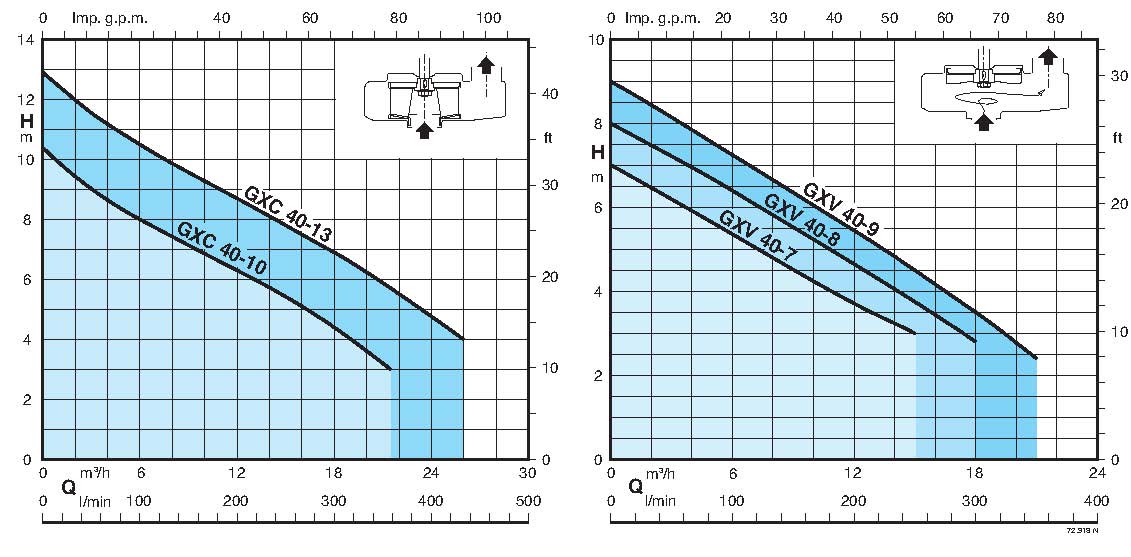

Flow

3 - 36

mc/h

Head

3 - 12.9

Power

0.55 - 1.2

Flow

13.2-158.5

usgpm

Head

9.8-42.3

Power

0.73-1.6

APPLICATIONS

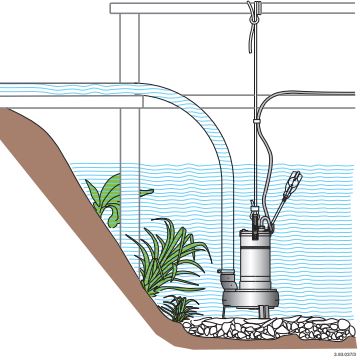

- For clean and dirty water, also containing solids up to 35 mm grain size.
- The GXV free-flow impeller construction is particularly suitable for liquids with a high solid content or with filamentous particles.
- This construction (with smooth surfaces in rolled-stainless steel and easy access for cleaning) is also suitable for certain uses in the food industry.

CONSTRUCTION

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
GXC: with two-passage impeller.
GXV: with free-flow (vortex) impeller.
Double shaft seal with interposed oil chamber.

Catalog

60 Hz Catalogue

Download (669.02 KB)

Instruction

Download (3.97 MB)
