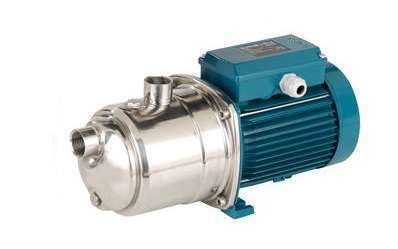

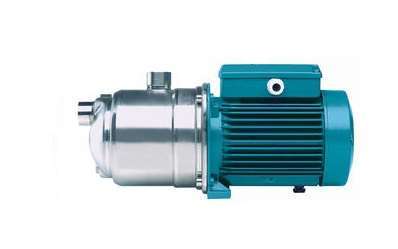

Self-Priming Jet Pumps

NGX Series

Flow
0.3 - 8.4
m³/h
Head
18 - 60
m
Power
0.45 - 1.5
kW
Flow
1.3-36.9
usgpm
Head
59-196.5
ft
Power
0.60-2
hp
Applications

- For drawing water out of a well.

- For lifting water containing air or other gases.

- For increasing water pressure from flooded suction applications.

- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).

- For garden use.

- For washing with a jet of water.

Construction

Close-coupled self-priming shallow-well pump with built-in ejector.

A high-quality pump for domestic water supply. Designed with environmental considerations, featuring a stainless steel casing, brass alloy impeller with minimal use of plastic materials.

Catalog
60 Hz Catalogue
PDF icon Download (511.51 KB)
