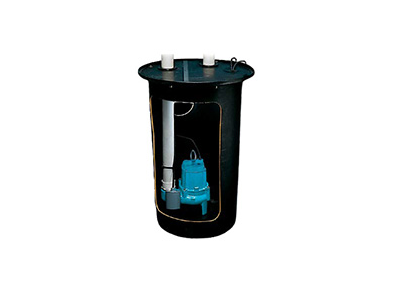

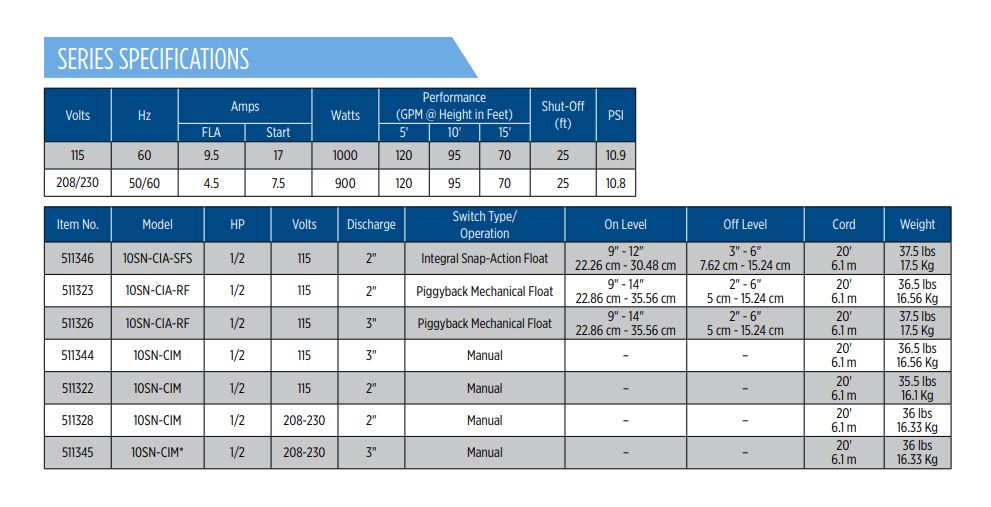

9SN & 10SN Series
Permanent Split Capacitor (PSC)
Energy-saving low amp draw
Designed for continuous duty
2" FNPT (51 mm) and 3" FNPT (76.2 mm) discharge models
Handles solids up to 2" (51 mm) diameter
Multiple switch options for automatic operation
140 °F (60 °C) liquid temperature rating
cCSAus listed

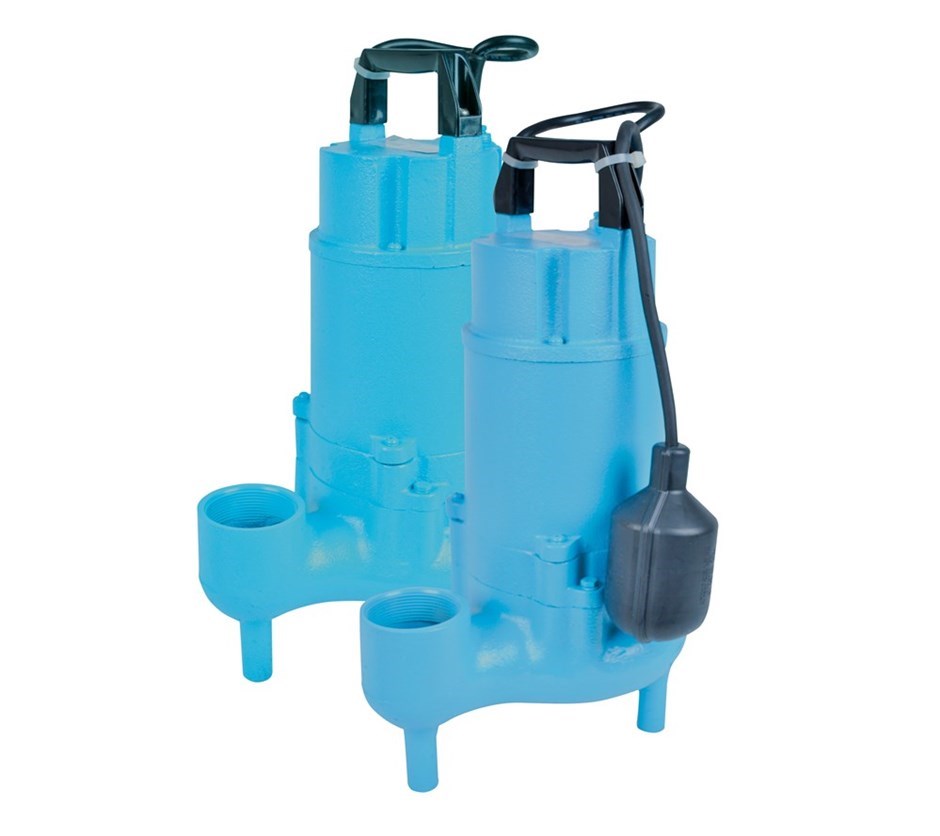

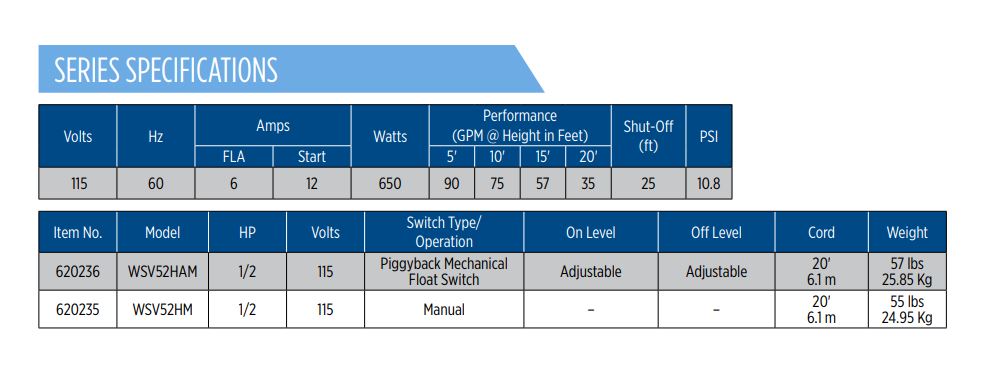

WSV52 Series
Oil-free permanent split capacitor (PSC) motor
Designed for continuous duty
2" FNPT (51 mm) discharge
Handles solids up to 2" (51 mm) diameter
Power cord sealed at motor housing
140 °F (60 °C) liquid temperature rating
cCSAus listed

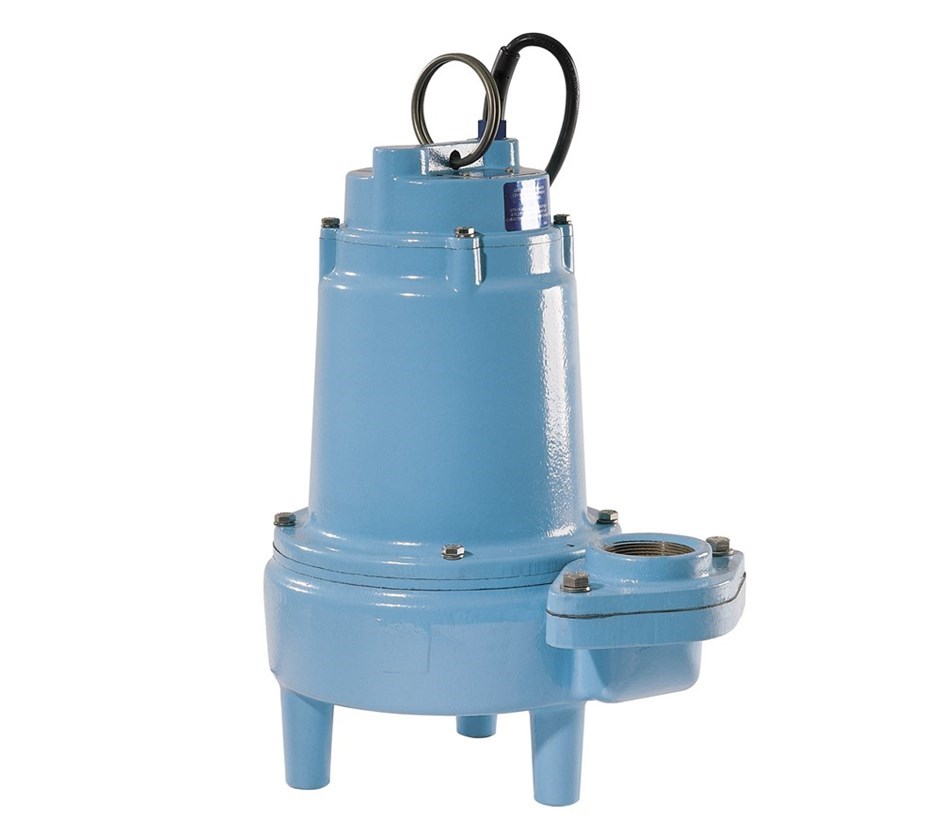

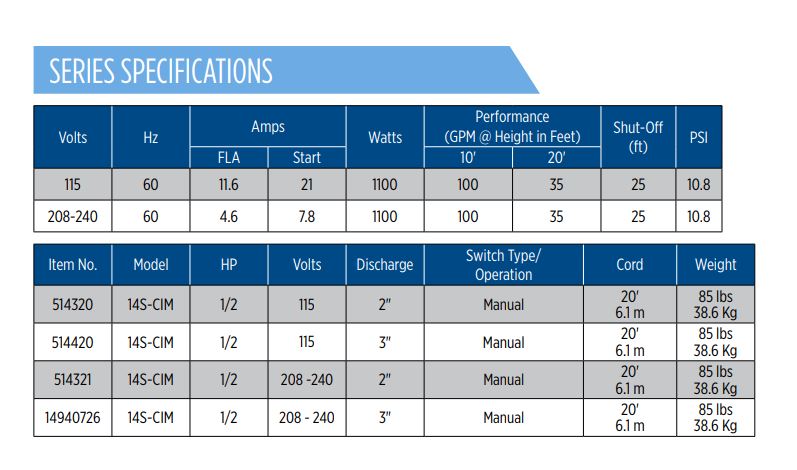

14S Series
Permanent Split Capacitor (PSC)
Designed for continuous duty
2" FNPT (51 mm) and 3" FNPT (76.2 mm) discharge models
Handles solids up to 2" (51 mm) diameter
140 °F (60 °C) liquid temperature rating
cCSAus listed

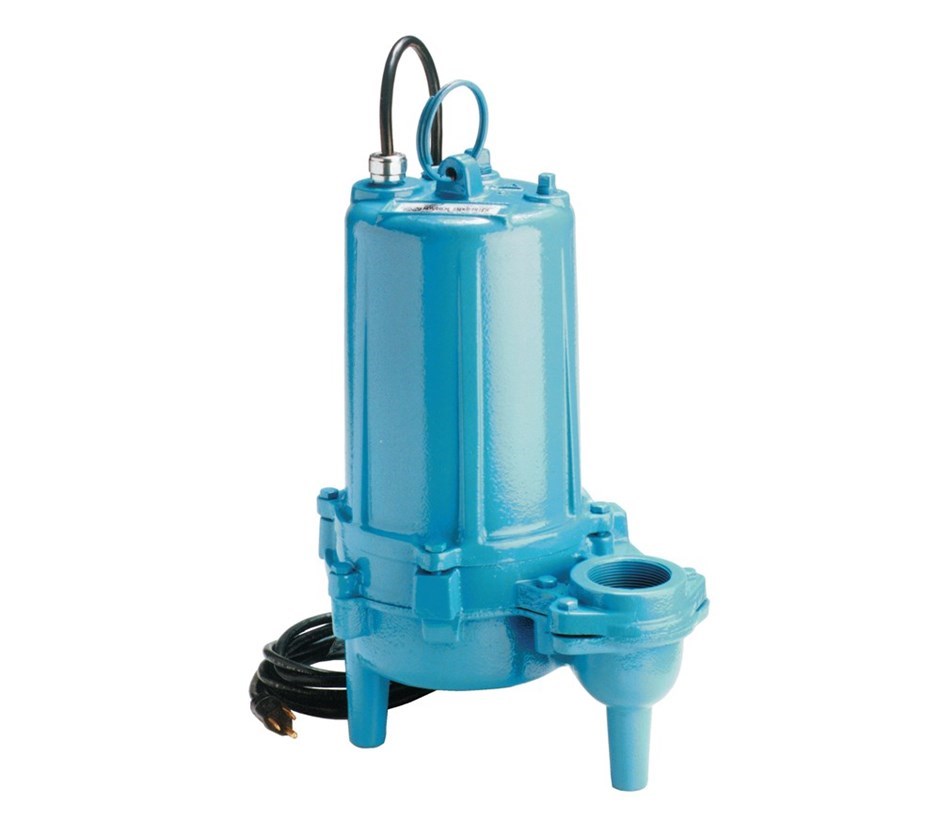

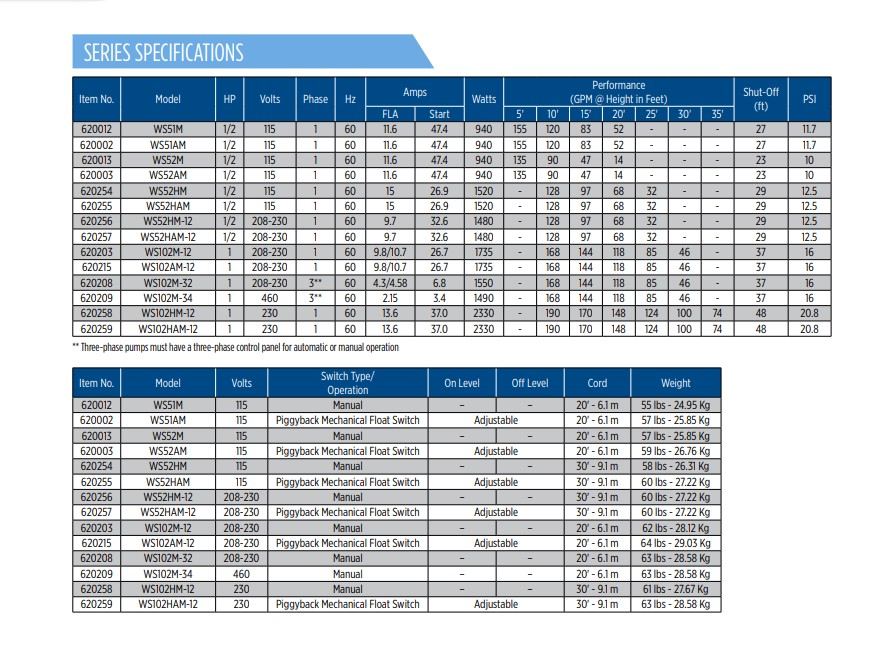

WS Series
All cast iron construction
Oil-filled motor with double ball bearing capacitor start designed for high torque with automatic reset (single-phase only)
Designed for continuous duty
Switch options for automatic operation
2" (50 mm) NPT
Handles solids up to 2" (51 mm) diameter
Power cord sealed at motor housing
120 °F (49 °C) liquid temperature rating
cCSAus listed

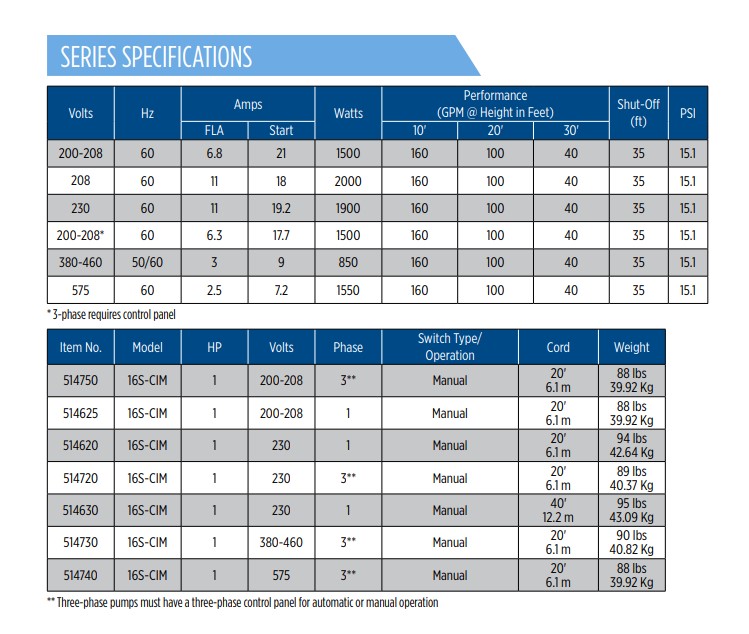

16S Series
Permanent Split Capacitor (PSC)
Designed for continuous duty
3" FNPT (76.2 mm) discharge
Handles solids up to 2" (51 mm) diameter
140 °F (60 °C) liquid temperature rating
cCSAus listed

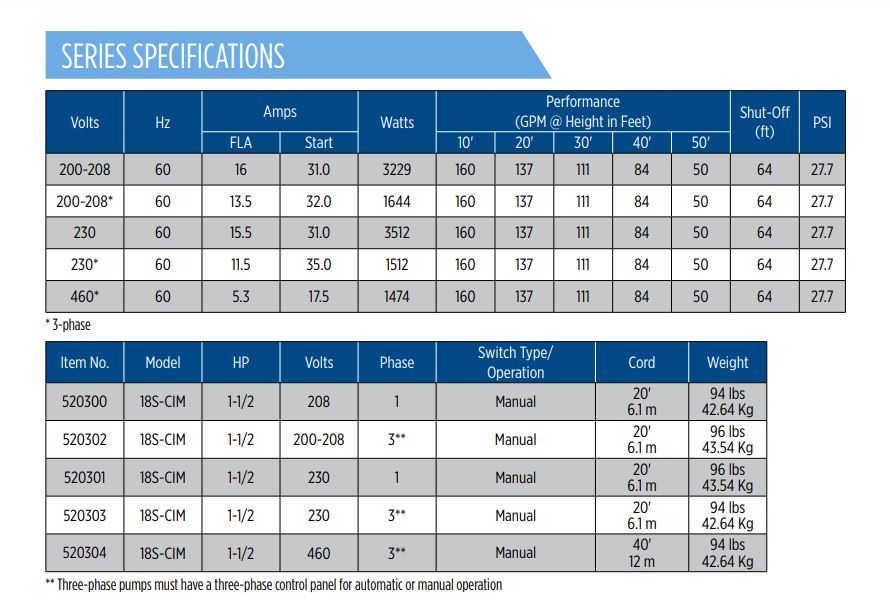

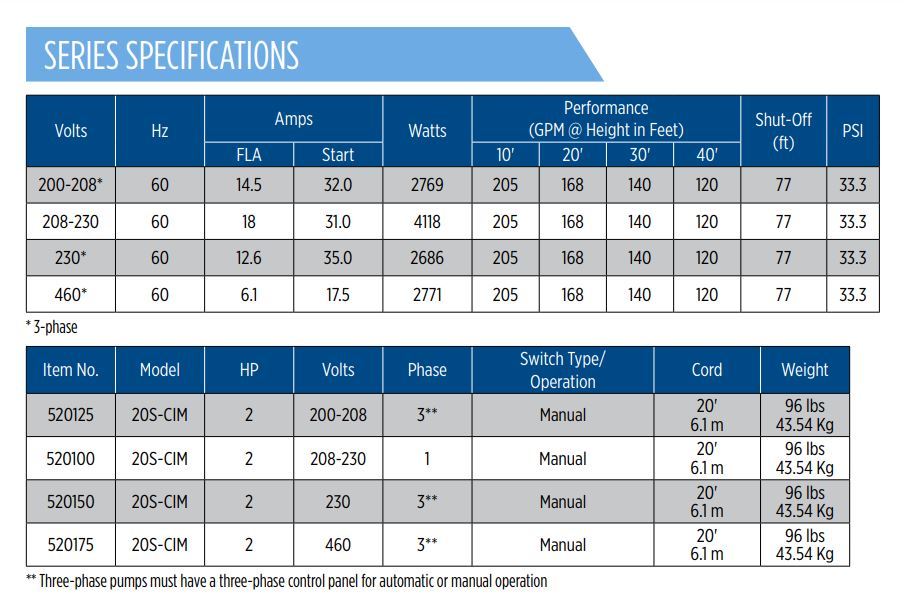

18S & 20S Series
Permanent Split Capacitor (PSC)
Designed for continuous duty
Capacitor and power cord connections are isolated from oil-filled motor housing for ease of field maintenance
3" FNPT (761 mm) discharge
Handles solids up to 2" (51 mm) diameter
140 °F (60 °C) liquid temperature rating
cCSAus listed
