Automatic Waste Water Collecting and Lifting Station

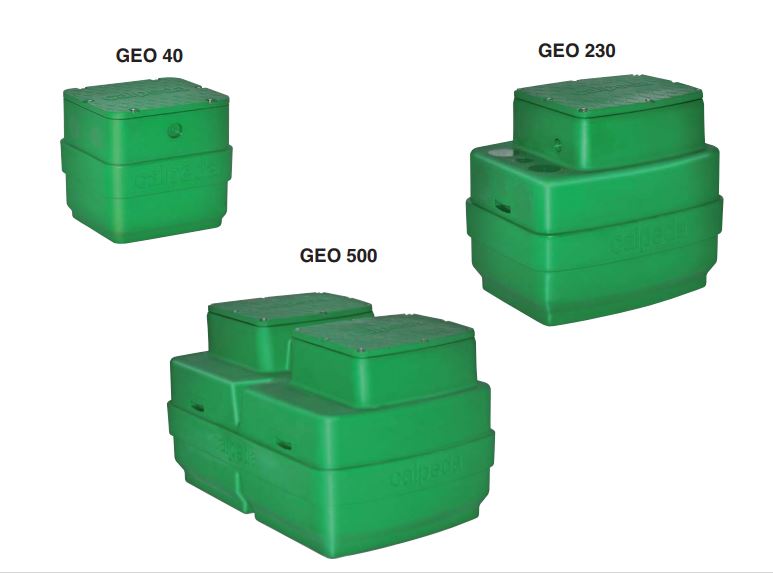

GEO 40, 230, 500

APPLICATIONS

- Automatic waste water collecting and lifting stations, to handle domestic, civil and industrial waste water.
- For collecting and lifting clean waste water and rain water.
- For flood drainage.

CONSTRUCTION

High-density polyethylene tank, resistant to corrosion, with minimum overall dimensions.

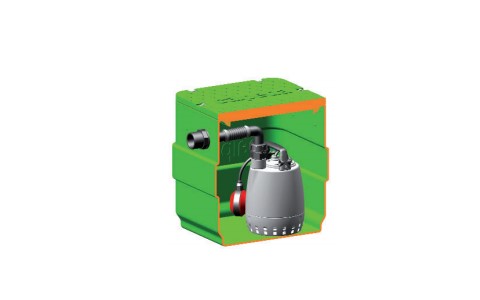

- GEO 40 single tank with 40 liter nominal capacity for the installation of a GXRM type.

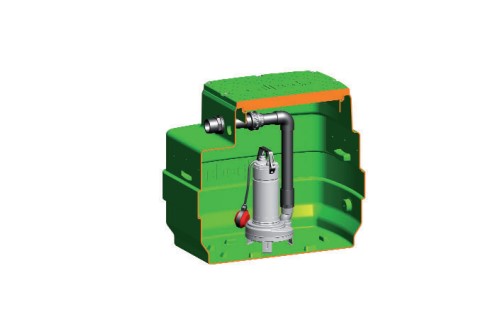

- GEO 230 single tank with 230 liter nominal capacity for the installation of an electropump type GM 10, GQ, GX or GM series.

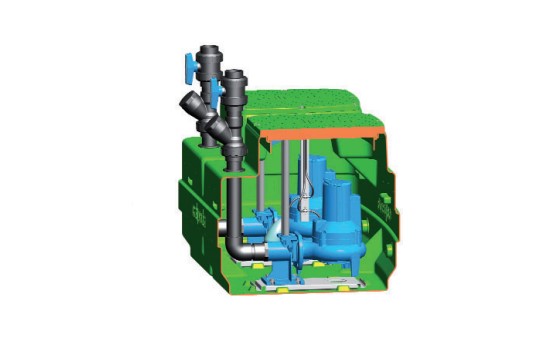

- GEO 500 double tank with 500 liter nominal capacity for the installation of two electropumps type GM 10, GQ, GX or GM series.
Pipe kit for electropump connection.

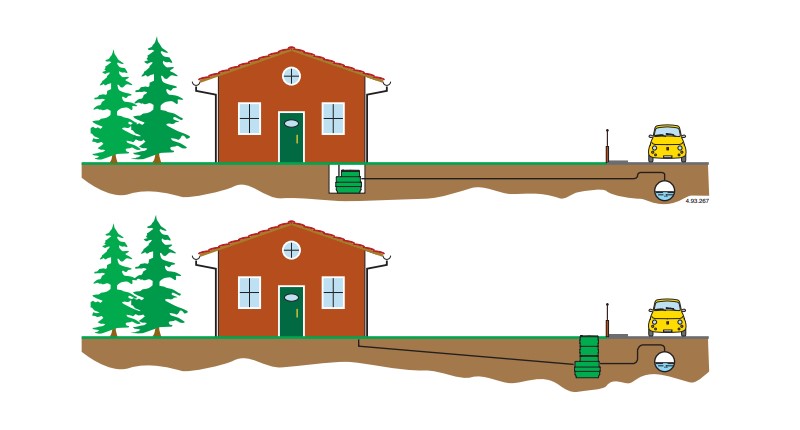

Two possible installation, at ground level or underground.
For underground installation, extentions can be used.
Easy pump access through a cover fixed with screws.

Catalog

60 Hz Catalogue

Download (1.24 MB)
