Peripheral Pumps

CT Series

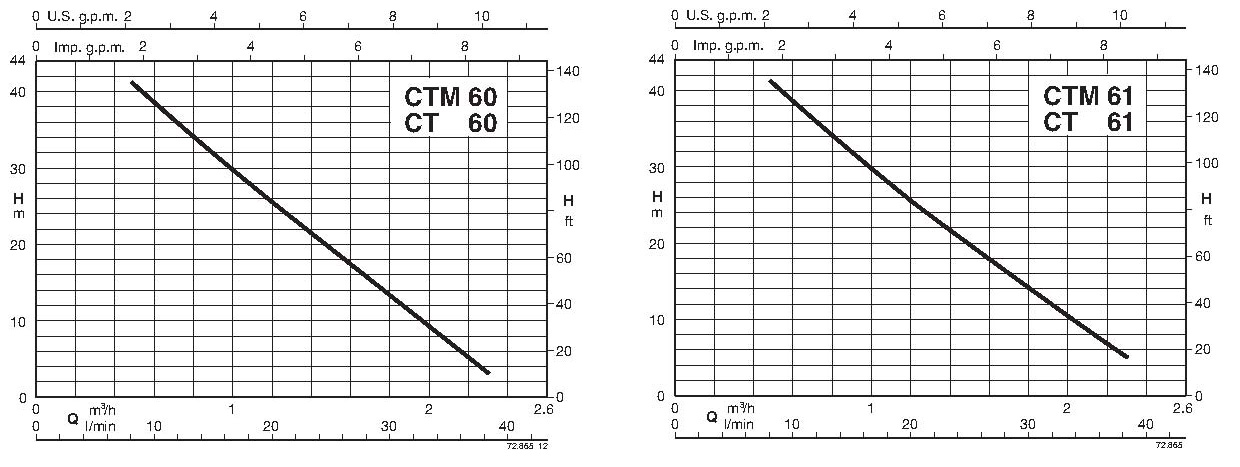

Flow

0.48 - 2.3

m³/h

Head

3 - 41

Power

0.33

Flow

2.11-10

usgpm

Head

9.8-134

Power

0.44

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggresive for the pump materials.

- For increasing network pressure (follow local specifications).

- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.

Construction

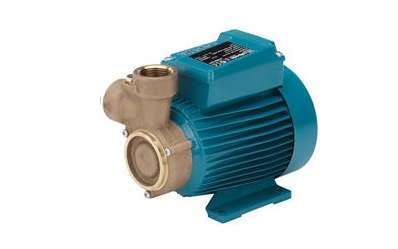

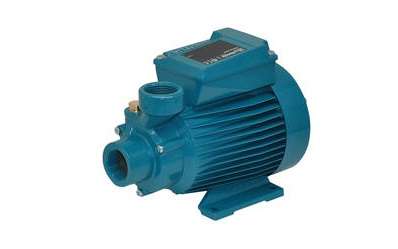

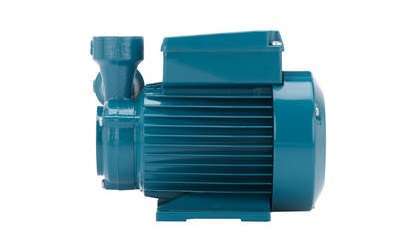

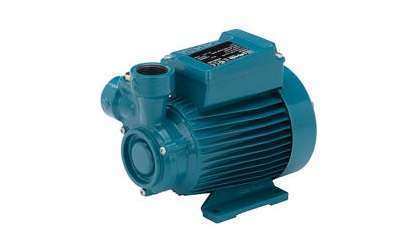

Close-coupled peripheral pump (regenerative pump) with turbine impeller. Compact, patented construction with single piece motor casing and pump-side wall.

Protected against water entering the motor from outside.

CT: version with pump casing in cast iron.

B-CT: version with pump casing in bronze (the pumps are supplied fully painted).

Catalog

60 Hz Catalogue

Download (688.17 KB)
