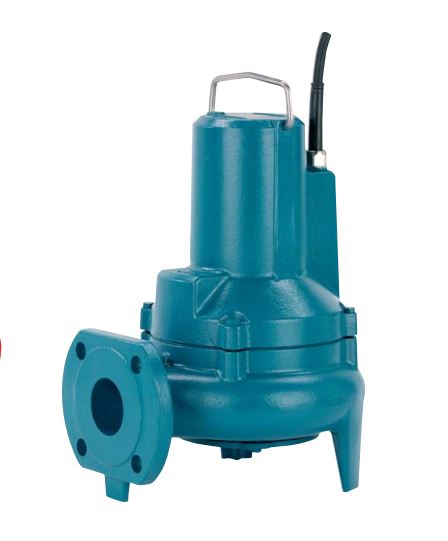

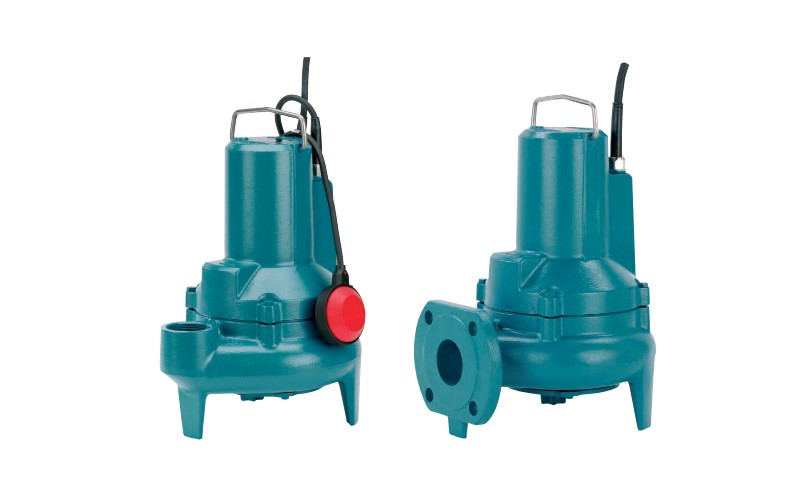

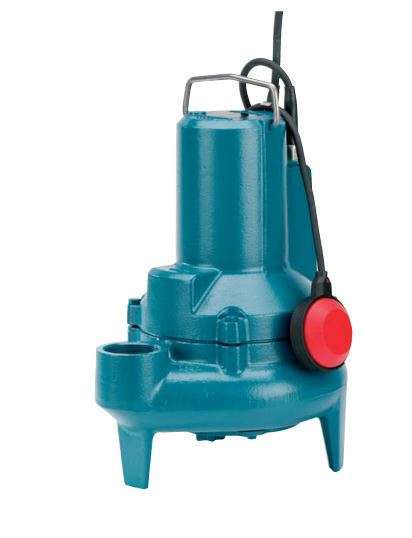

Close Coupled Electric Submersible Sewage and Drainage Pumps
GM 50

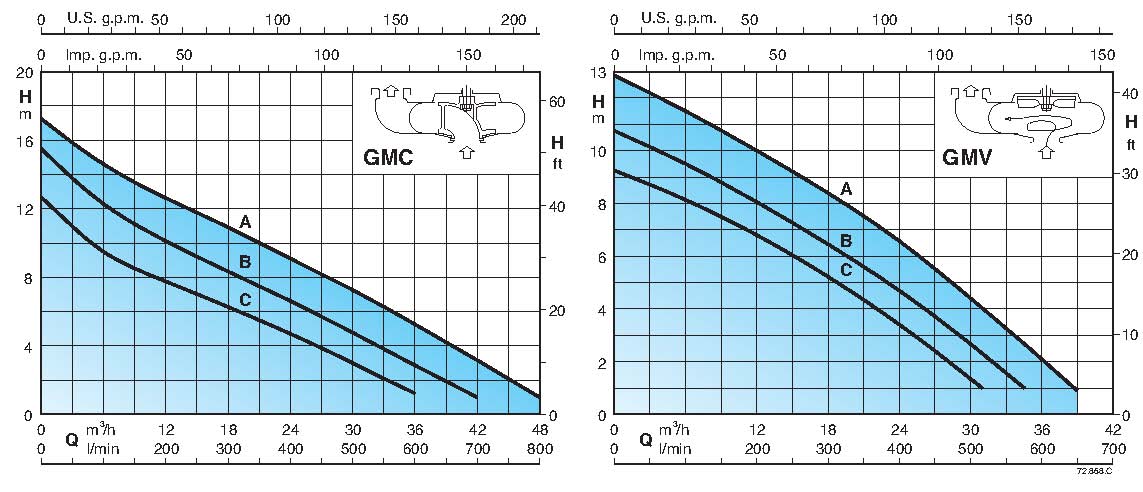

Flow
6 - 48
mc/h
Head
1 - 17.3
m
Power
0.75 - 2
kw
Flow
26.4-211.3
usgpm
Head
3.2 - 56.7
ft
Power
1 - 2.68
hp
APPLICATIONS
- For domestic or industrial waste water, dirty water with solids up to 45 mm grain size for GMC and 50 mm for GMV, for liquids which are compatible with the pump materials.
CONSTRUCTION
Close coupled electric submersible pumps.
GMC: with single-channel impeller.
GMV: with free-flow (vortex) impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
Catalog
60 Hz Catalogue
