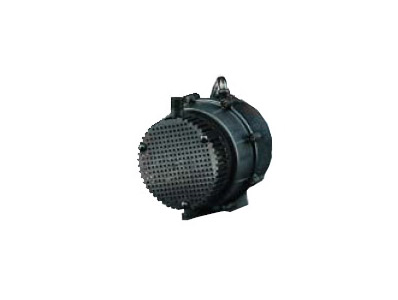

NK SERIES

1/40 hp oil-filled motor
Nylon housing, cover and volute
Fluoroelastomer (FKM) shaft seal
Polyethylene screen

Flow Rate

0.19-0.79

m^3/h

Head

0.3-2.5

Power

Flow

0.83-3.5

usgpm

Head

0.98-8.2

Power

1/150

APPLICATIONS

- Water transfer or recirculation, water displays, machine tool coolants, and mild acids

CONSTRUCTION

MOTOR – 1/150 HP oil filled
INTERMITTENT LIQUID TEMPERATURE UP TO – 120°F
INTAKE – N/A
DISCHARGE – 1/4" MNPT
HOUSING – Nylon
COVER – Nylon
VOLUTE – Nylon
IMPELLER – Nylon
SHAFT SEAL – Viton®
SCREEN – Polyethylene
