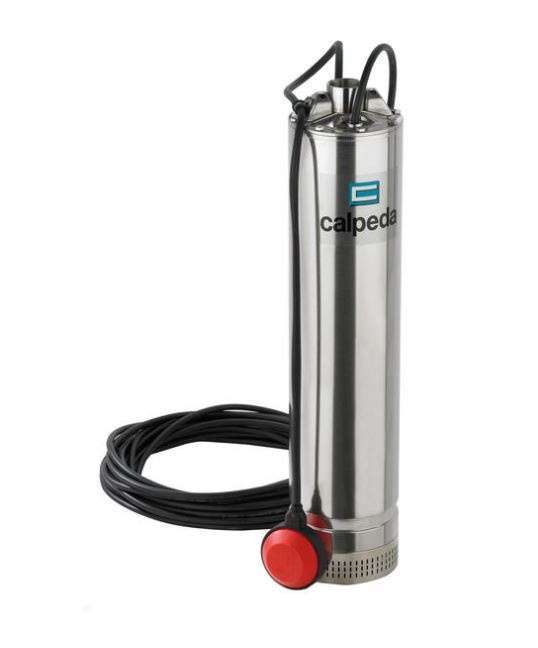

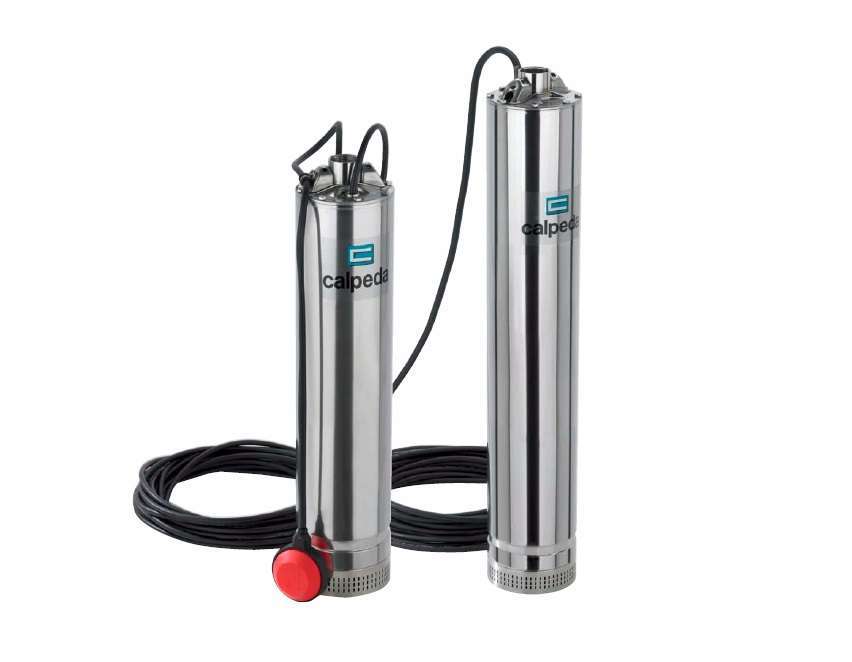

Multi-Stage Submersible Clean Water Pumps in Stainless Steel

MXS

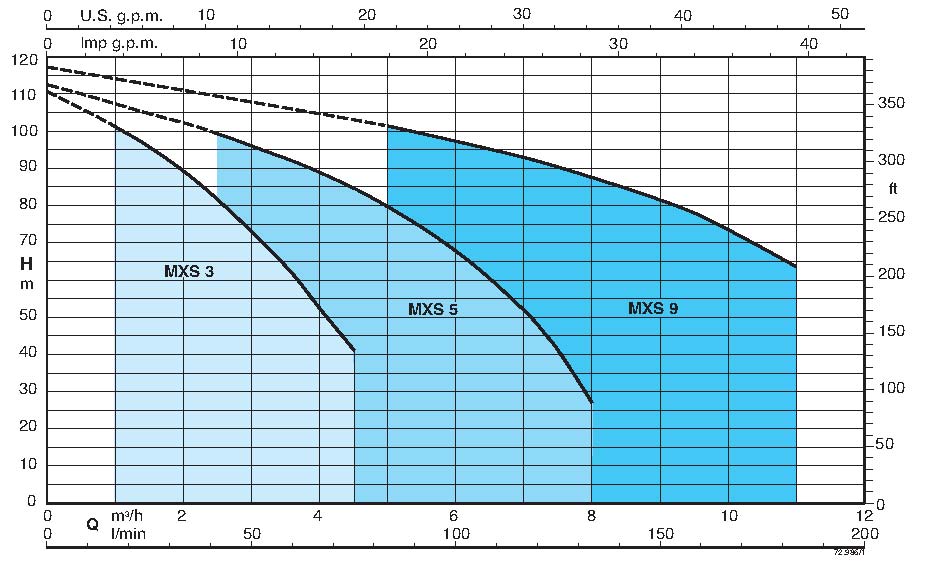

Flow

1 - 15

mc/h

Head

11.3 - 114

m

Power

0.45 - 3

kW

Flow

4.40-66

usgpm

Head

37 - 374

ft

Power

0.6-4

hp

Applications

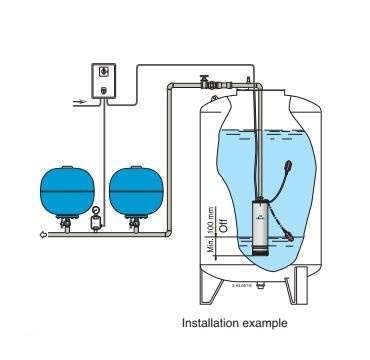

- For water supply from wells, tanks or reservoirs.

- For domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems.

Construction

Close coupled milti-stage submersible pumps.

All parts in contact with the fluid both internal and external are in chrome-nickle stainless steel.

MXSM with built-in capacitor, accessible through the delivery casing.

Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged.

Double shaft seal with oil chamber.

The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.

Catalog

60 Hz Catalogue

Download (543.92 KB)
