Self-Priming Liquid Ring Pumps

CA Series

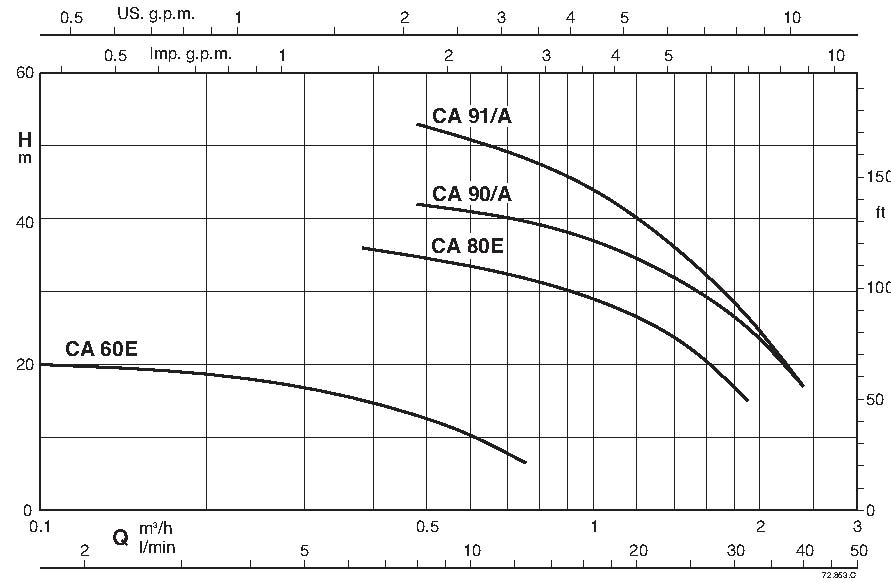

Flow

0.12 - 2.4

mc/h

Head

6.5 - 53

m

Power

0.33 - 0.75

kW

Flow

0.52-10

usgpm

Head

21-173

ft

Power

0.45-1

hp

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.

- If the liquid to be pumped has entraied air or gas or the flow in the suction pipe is not stable.

- For drawing water out of a well.

- For increasing network pressure (follow local specifications).

Construction

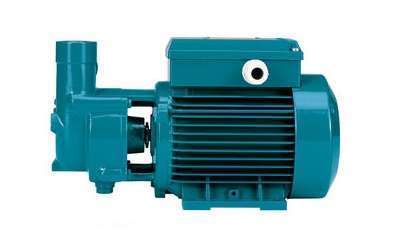

Close-coupled self-priming liquid ring pumps with star impeller.

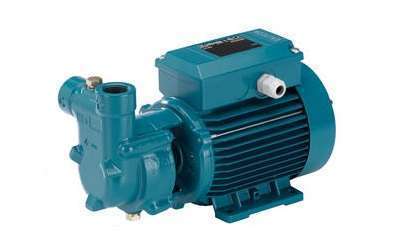

CA: version with pump casing and lanter bracket in cast iron.

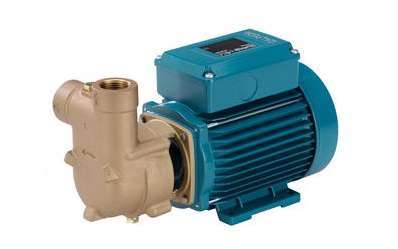

B-CA: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Catalog

60 Hz Catalogue

Download (540.9 KB)
