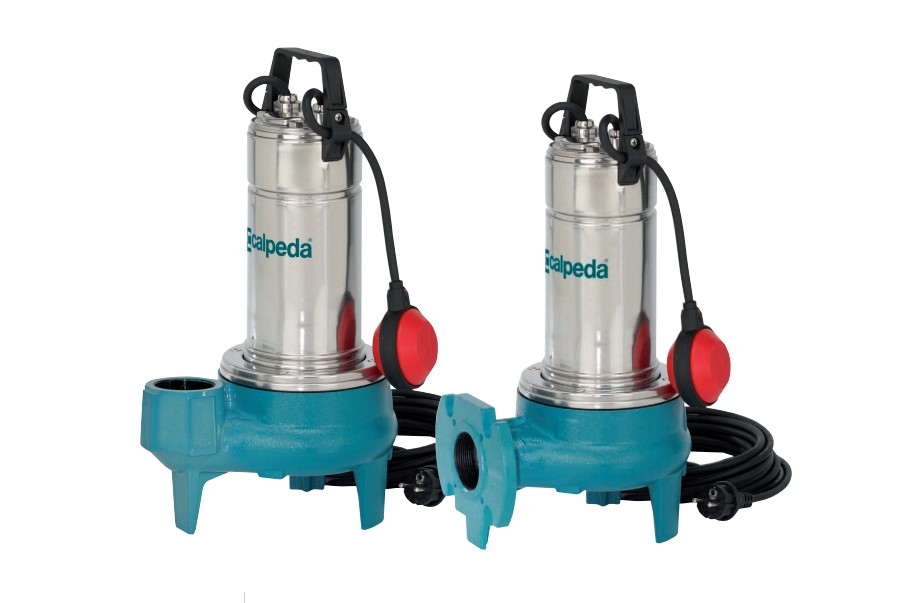

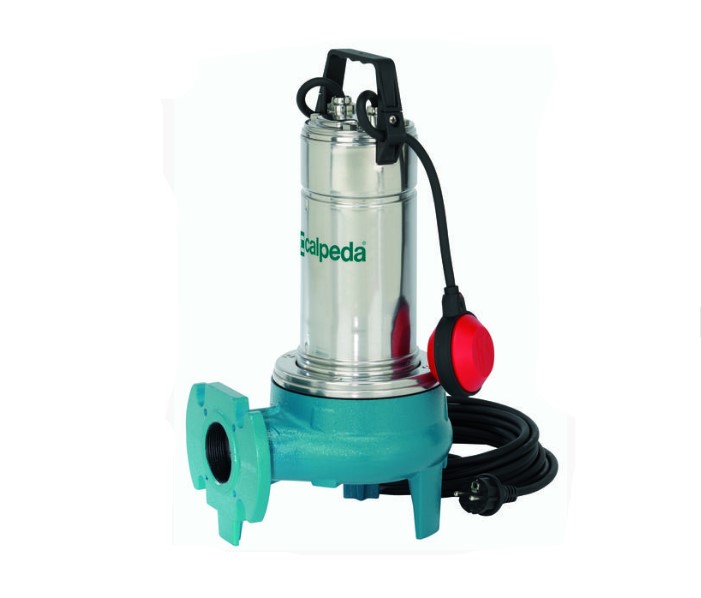

Single-Impeller with Free-Flow (Vortex) Impeller and Vertical Threaded Submersible Pumps

GQS, GQV

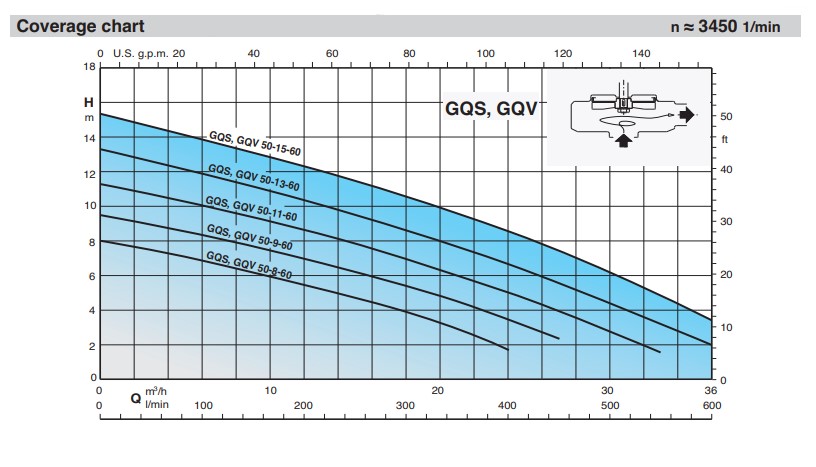

Flow

3 - 36

mc/h

Head

1.5 - 15.5

m

Power

0.55 - 1.5

kW

Flow

13.20-158

usgpm

Head

4.9-50.85

ft

Power

0.75-2

hp

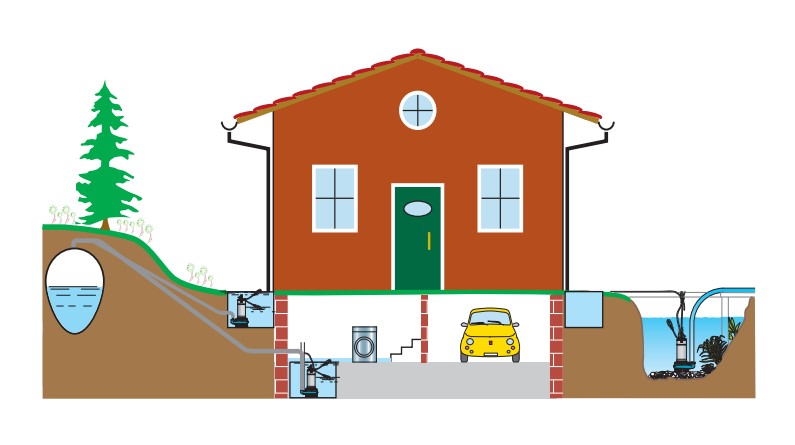

Applications

- For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials.

- For draining rooms or emptying tanks.

- Extraction of water from ponds, streams or pits and for rainwater collection.

Construction

Single-impeller submersible pumps, with free-flow (vortex) impeller and with vertical threaded delivery port (G 2").

Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Catalog

60 Hz Catalogue

Download (1.07 MB)
