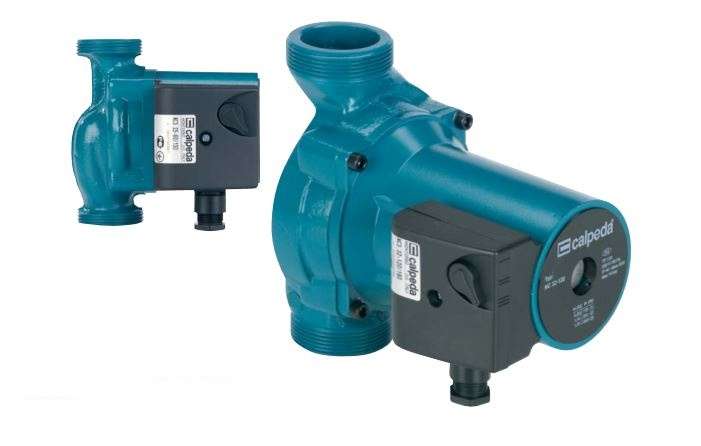

Three Speed Circulating Pump with Threaded Port

NC3

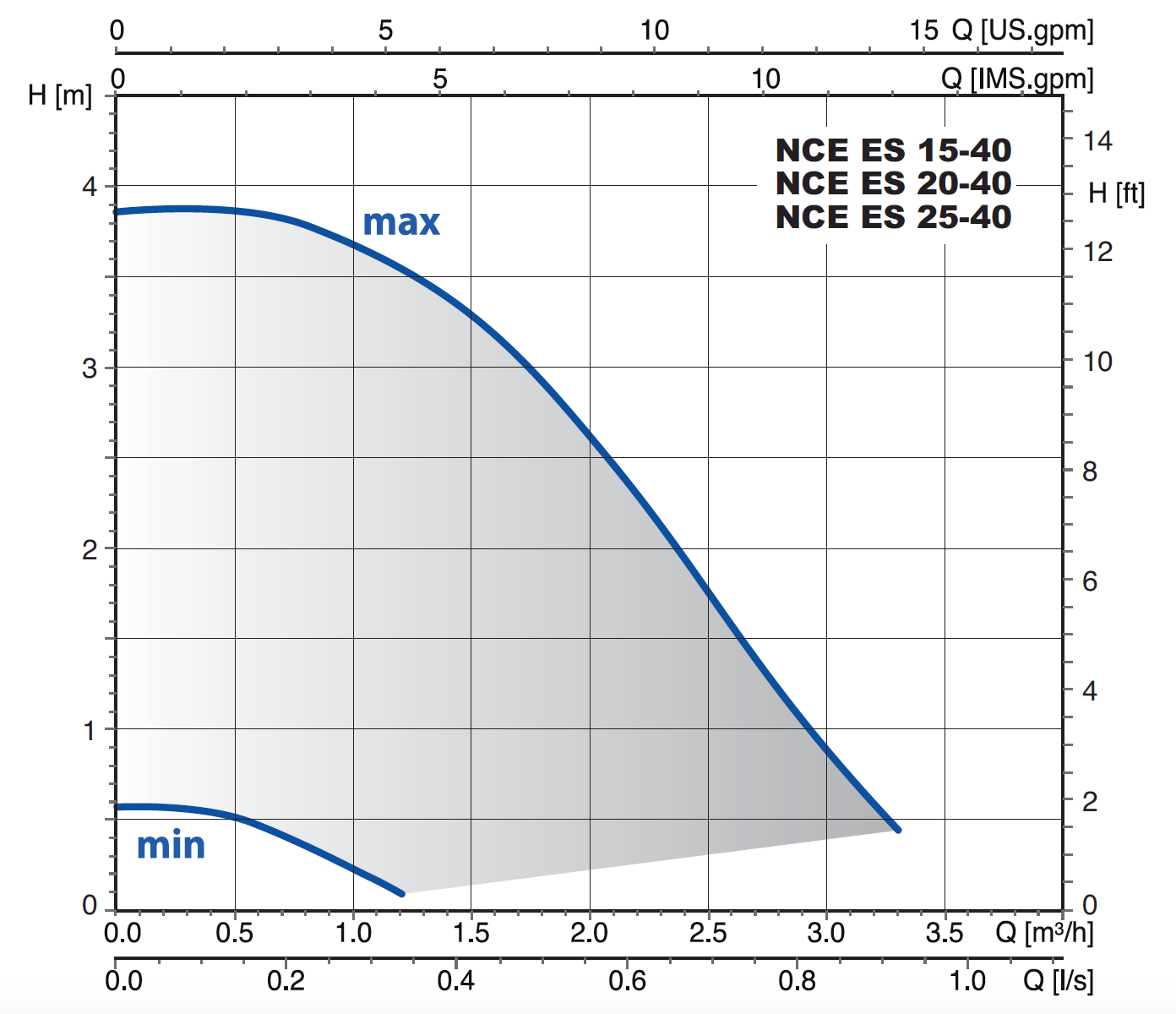

Flow
0.1 - 11.3
mc/h
Head
0.25 - 11.3
m
Power
0.17-0.27
kw
Flow Rate
0.44-49.75
usgpm
Head
0.82-37
ft
Power
0.17-0.37
hp
APPLICATIONS

- For clean liquids, without abrasives, which are non-aggressive for the pump materials.
- Civil and industrial heaty sistems.

CONSTRUCTION

Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line).
Brass or cast iron unions on request.

Catalog
60 Hz Catalogue
PDF icon Download (425.41 KB)
