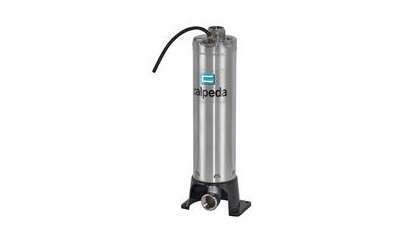

5” Vertical Multi-Stage Close Coupled Surface Pumps

MPSU

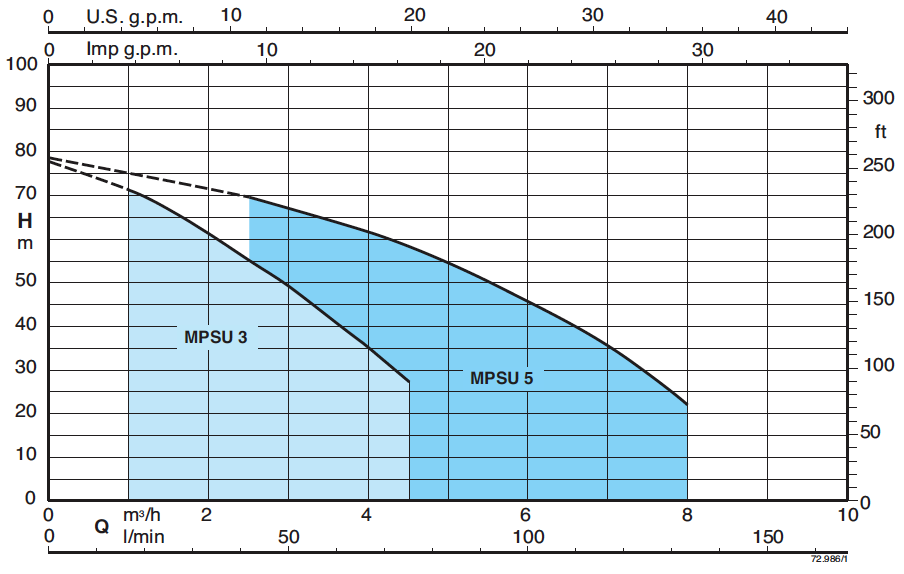

Flow

1 - 11

mc/h

Head

12 - 61

Power

0.55 - 1.5

Flow

4.40-48

usgpm

Head

39.37-200

Power

0.67-2

Applications

- For clean water without abrasives or additives aggressive for the materials of the pump.

- For domestic, civil and industrial applications.

- For installation in confined space with minimum ventilation.

- For installation in locations subject to risk of temporary flooding.

- For installation in areas exposed to water jetting.

- When low-noise operation is required.

Construction

Vertical multi-stage close coupled pumps in chrome-nickel stainless steel, with motor shields in brass.

Suction connection on the lower casing and delivery connection on the top casing. Motor cooled by the pumped water passing between the motor jacket and the external jacket.

Double mechanical shaft seal with interposed oil chamber.

Catalog

60 Hz Catalogue

Download (346.89 KB)
