Submersible Borehole pumps for 6” and 8” wells

SDX Series

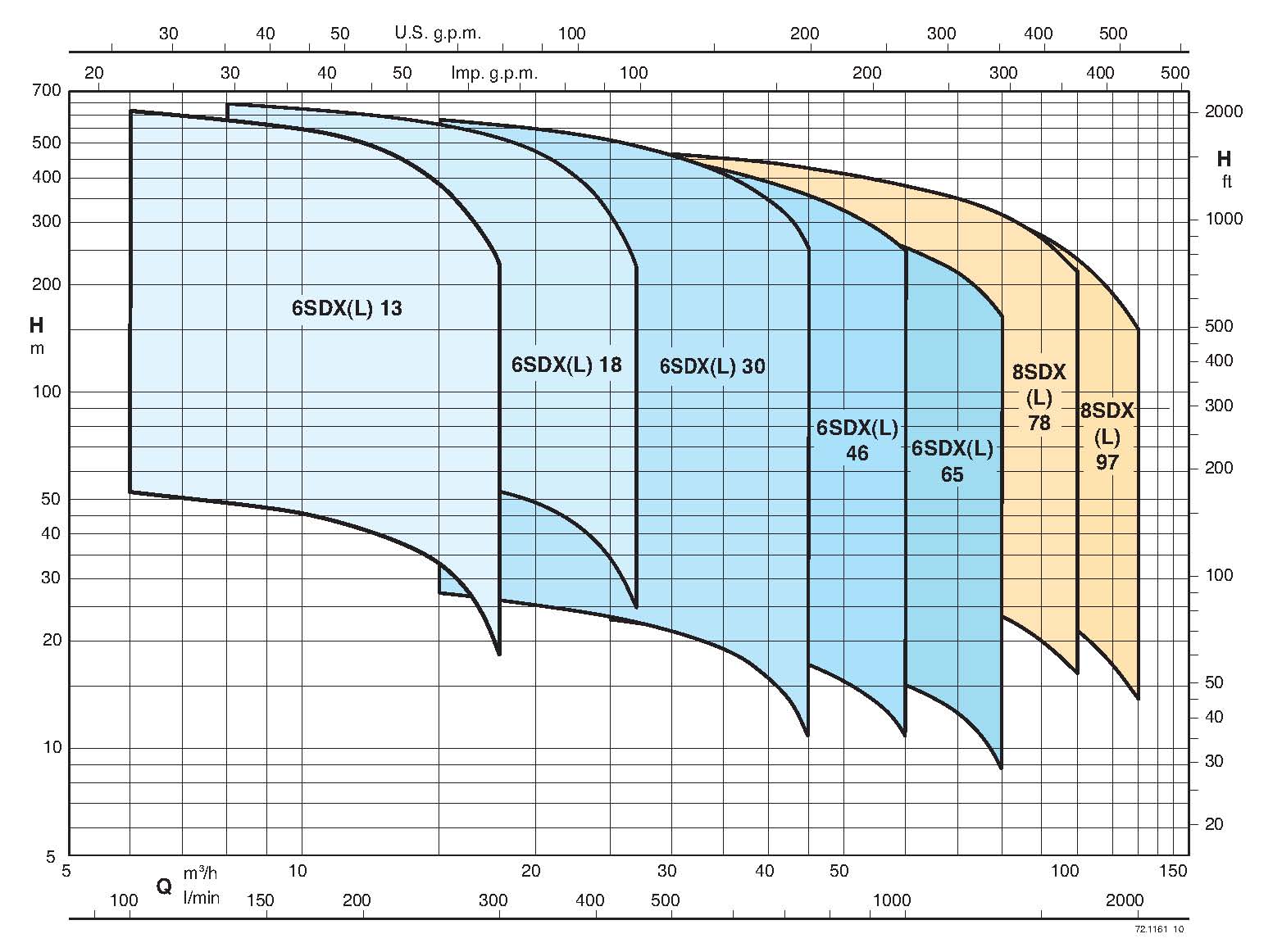

Flow

6 - 150

m³/h

Head

10 - 722

m

Power

4 - 110

kW

Flow

26.41-660.43

usgpm

Head

32.8 -2368.76

ft

Power

5.5 - 150

hp

Applications

- For water supply.

- For civil and industrial applications.

- For fire fighting applications.

- For irrigation.

Construction

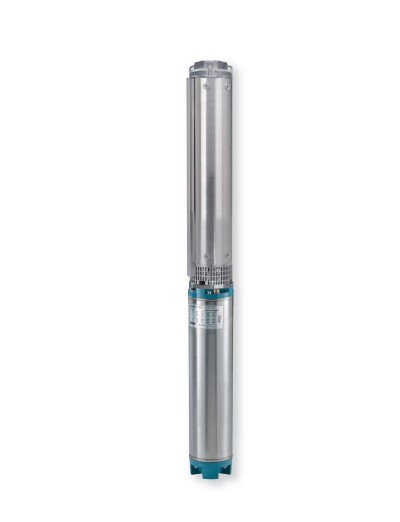

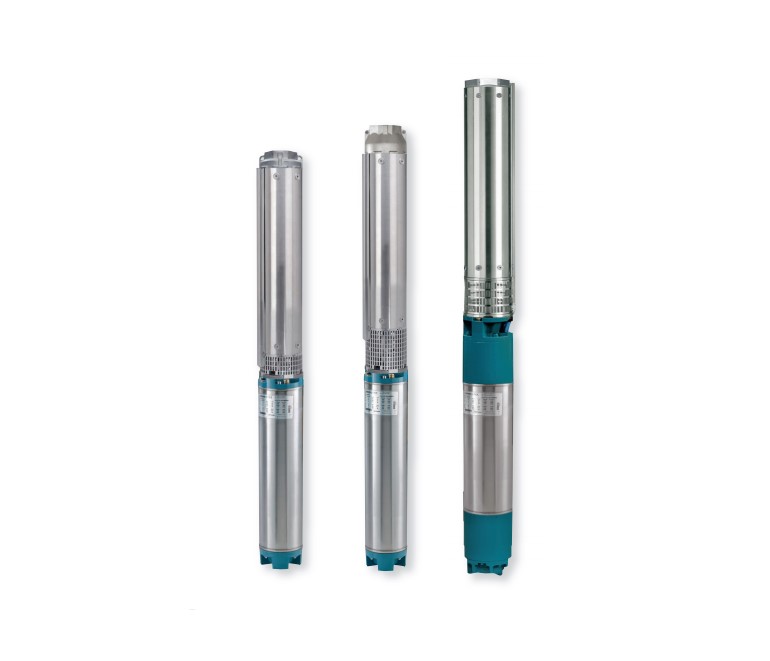

Submersible borehole pumps for 6" wells (DN 150mm) and 8" (DN 200 mm).

6,8SDX: with external jacket and stages in stainless steel AISI 304.

6,8SDX: with external jacket and stages in stainless steel AISI 316.

Impellers

Radial impellers: 6SDX(L) 13-18-27.

Mixed flow impellers: 6SDX (L) 30-46-65, 8SDX(L) 78-97.

Connection: Screwed connection ISO 228

Delivery casing with built-in non-return valve.

Catalog

60 Hz Catalogue

Download (1014.86 KB)
