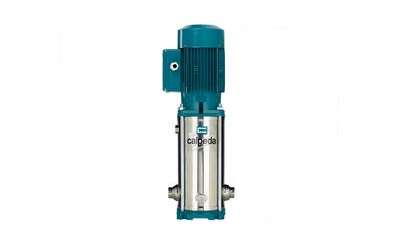

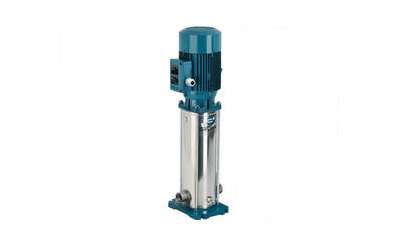

Vertical Multi-Stage Close Coupled Pumps
MXV-B Series

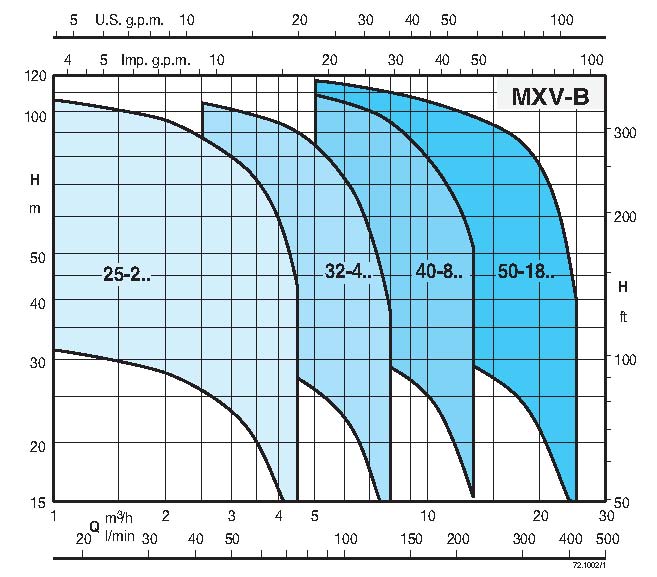

Flow
1 - 27
m³/h
Head
22 - 123
m
Power
0.75 - 7.5
kW
Flow
4.40-118.9
usgpm
Head
72-403.5
ft
Power
1-5.10
hp
Application
- For water supply systems.
- For clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggresive for stainless steel (with adaptation of sealin materials on request).
- A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations
Construction
Vertical multi-stage close coupled pumps with saction and delivery connections of the same diameter and arranged along the same axis (in-line). All parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosionresistant sleeves lubricated the pumped liquid.
Catalog
60 Hz Catalogue
