Small Submersible Pump 1 Series

Flow

0.04-0.79

m³/h

Head

0.31-2.13

Power

Flow

0.17-3.9

usgpm

Head

1-7

Power

6.7

APPLICATIONS

- Water transfer or recirculation, and water displays
- Water transfer or recirculation, water displays, and machine tool coolants

CONSTRUCTION

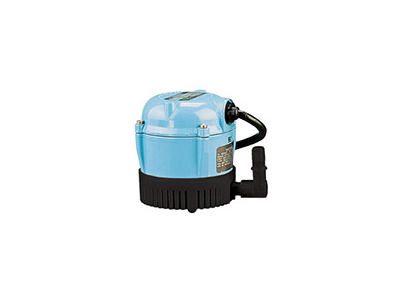

1 Series
1/150 hp oil-filled, direct drive motor
Designed for continuous duty, submersible use only
Epoxy coated cast aluminum housing and cover
Polypropylene volute and elbow
Nitrile shaft seal

1-A Series
1/200 hp oil-filled, direct drive motor
Designed for continuous duty, submersible use only
Epoxy coated cast aluminum housing and cover
Polypropylene volute and elbow
Nitrile shaft seal

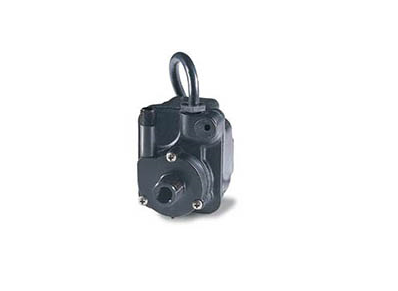

1-EA Series
1/125 hp epoxy encapsulated motor
Glass-filled polyester housing
Epoxy coated cast aluminum cover
Nylon volute
Fluoroelastomer (FKM) shaft seal
cCSAus listed

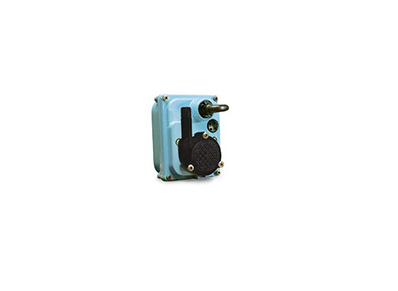

1-MA Series
1/200 hp oil-filled, direct drive motor
Designed for continuous duty, submersible use only
Epoxy coated cast aluminum housing and cover2
Polypropylene volute
Nitrile shaft seal

1-42 Series
1/150 hp oil-filled, direct drive motor
Designed for continuous duty, submersible or in-line use
Epoxy coated cast aluminum housing and cover
Nylon volute
Nitrile shaft seal
cCSAus listed

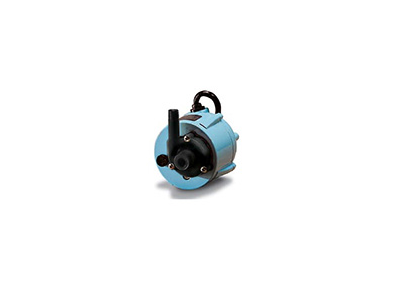

1-42 A Series
1/200 hp oil-filled, direct drive motor
Designed for continuous duty, submersible or in-line use
Epoxy coated cast aluminum housing and cover
Nylon volute
Nitrile shaft seal
cCSAus listed
