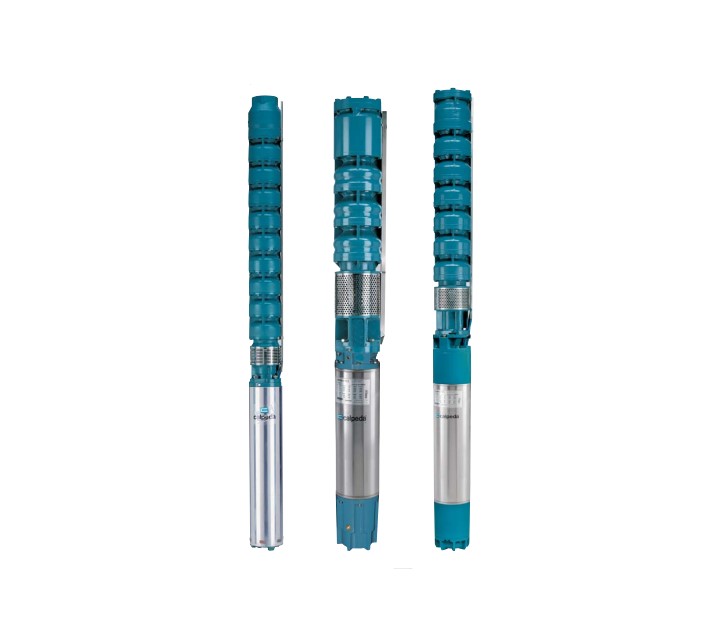

Submersible borehole pumps for 6”,8” and 10” wells

SDS Series

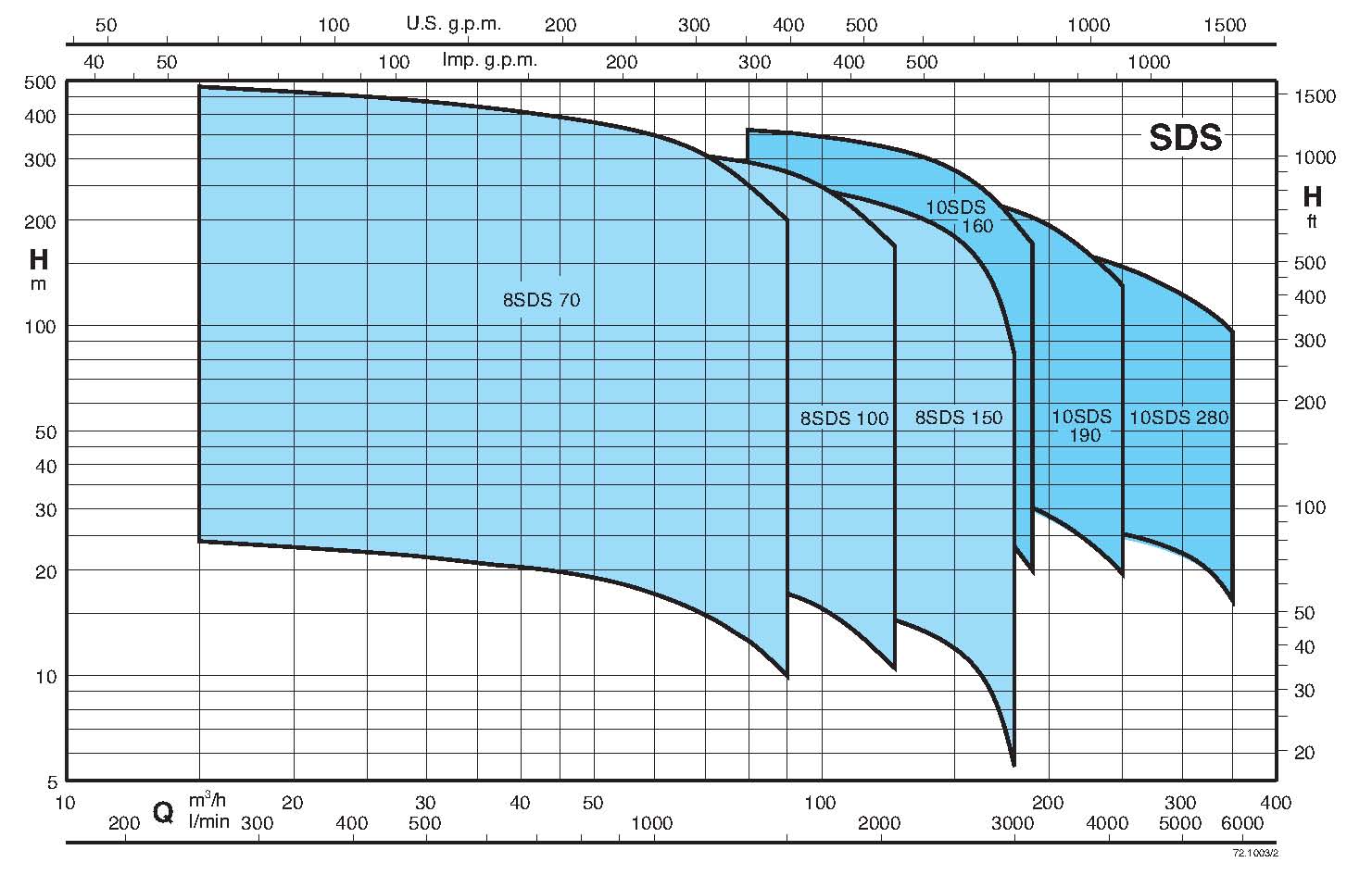

Flow

14.4 - 420

m³/h

Head

6 - 532

Power

3.7 - 150

Flow

63.4 - 1849.2

usgpm

Head

19.7 - 1745.2

Power

5 - 200

APPLICATIONS

- For water supply.
- For civil and industrial applications.
- For fire fighting applications.
- For irrigation.

CONSTRUCTION

Submersible borehole pumps for 6” wells (DN 150 mm), 8” (DN 200 mm) and 10” (DN 250 mm), with stages in cast iron or in bronze, on request.
Impellers: mixed flow impellers.
Connection:
- screwed connection ISO 228 for 6SDS;
- flange with counter-flange for welding for 8SDS and 10SDS.
Delivery casing with built-in non-return valve.

Catalog

60 Hz Catalogue

Download (1.4 MB)

Instruction

Download (3.49 MB)
