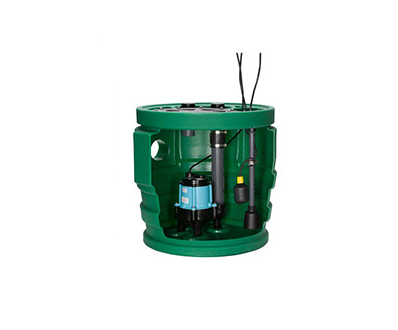

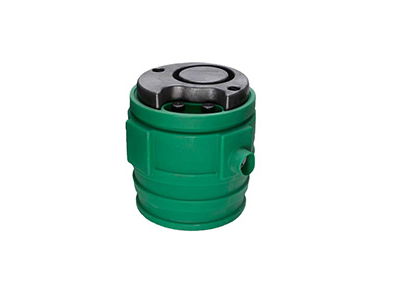

PIT +PLUS

New Switch! Introducing the new ECM™ for added reliability. The ECM™ (External Control Module) uses a ‘bell’ inside the basin to monitor liquid level for operation of a switch outside the basin (in the cover) and isolated from liquid. This reduces any chance of water intrusion, which can result in switch failure. No moving switch parts inside the basin eliminates failure from ‘hang-ups’.

Flow Rate

25-27.2

m^3/h

Head

6-7.62

Power

6-7.62

Flow Rate

110-120

gpm

Head

19.69-25

Power

0.40-0.50

APPLICATIONS

- Collection of sewage

- Drainage or seepage water

CONSTRUCTION

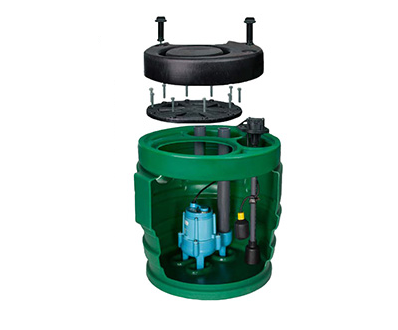

Roto-molded polyethylene basin 24" x 24" (61 cm x 61 cm)
Radial rib design for extra strength
Molded inlet hub
Molded anti-torque stops
360° molded handle
Integrated anti-flotation collar
Optional alarm versions
Pre-assembled
Functional and aesthetic finish cover
Pump access cover
Recessed discharge and vent location
Independent recessed switch module
Monolithic molded basin top
Switch cord grips and locators for directional control
4/10 hp or 1/2 hp sewage pump option available
