Fire-fighting System

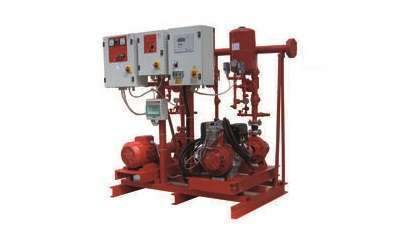

AUE, AUD and AUED Series.

Flow
15 - 700
m³/h
Head
20 - 110
m
Power
2.2 - 110
kW
Flow
66-3082
usgpm
Head
65-360
ft
Power
2.9-147
hp
Applications

For feeding water to automatic fire-fighting systems and units with hydrants.

Construction

Units constructed in accordance with UNI-EN 12845 standards for automatic fire-fighting systems (with sprinkler) and according to UNI 10779 for fire-fighting systems with fire hydrants. The units maybe composed of 1 or 2 main pumps. Units are fitted with a jockey pump, with which the system pressure level can be maintained without having to start the main pumps.

Catalog
60 Hz Catalogue
PDF icon Download (709.07 KB)
